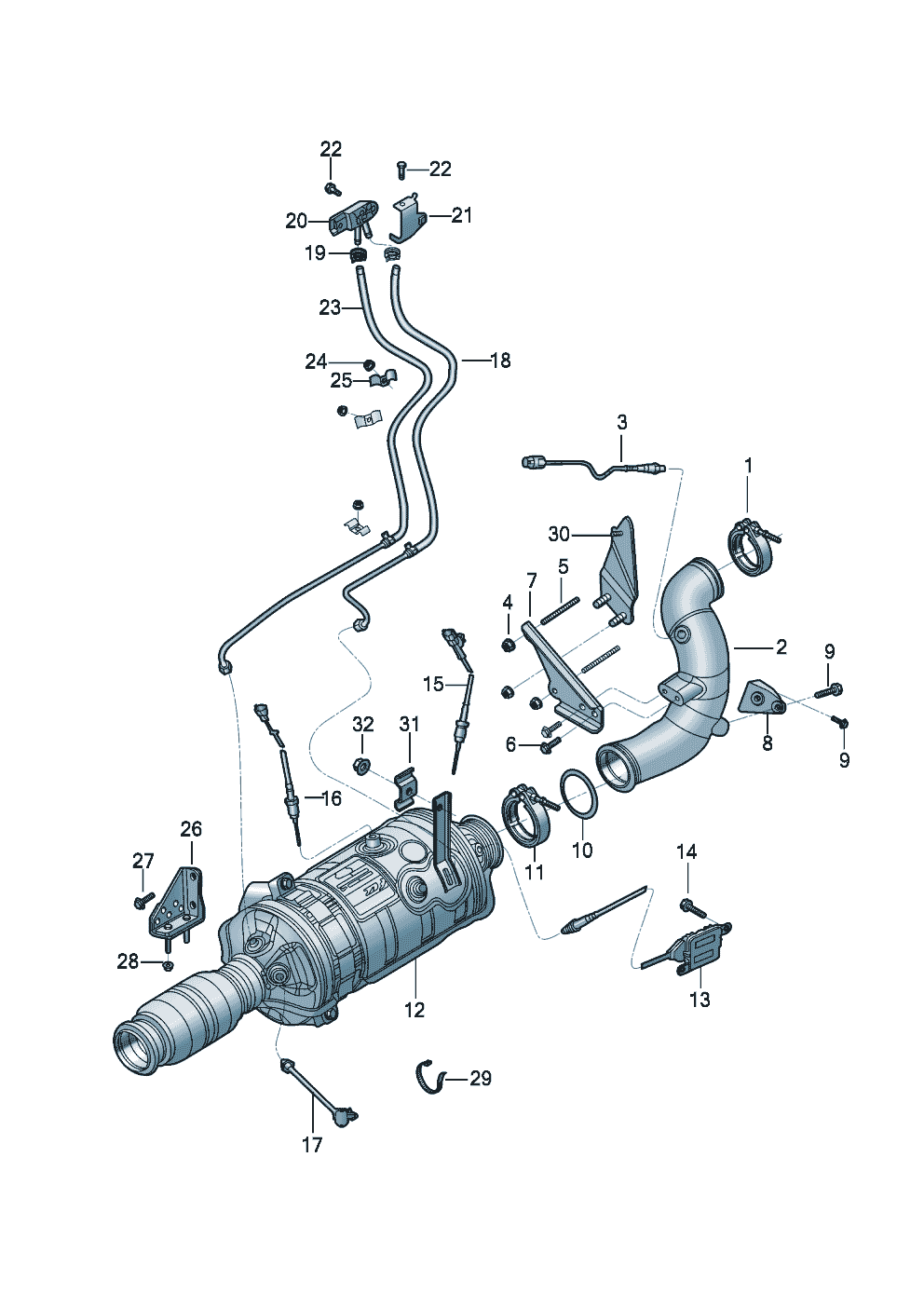

exhaust system Engine for Novo Delivery Euro VI(NDE6) 2025 [EUROPE]

№	part number	information		description	remark	unit
		exhaust system Engine		exhaust system Engine
1	23C 253 143	qty: 1 clamp	23C 253 143	clamp		1
2	23B 253 091 E	qty: 1 Exhaust pipe	23B 253 091 E	Exhaust pipe		1
3	23C 907 125	qty: 1 Lambda probe	23C 907 125	Lambda probe		1
4	N01 508 39	qty: 2 Hexagon collar nut	N01 508 39	Hexagon collar nut	M8	2
5	N10 887 801	qty: 2 double collared stud	N10 887 801	double collared stud	M10X60-M8X20	2
6	N10 156 009	qty: 2 Hex collared bolt	N10 156 009	Hex collared bolt	M8X25	2
7	23C 253 084	qty: 1 Retainer for exhaust pipe	23C 253 084	Retainer for exhaust pipe		1
8	2P0 253 084 B	qty: 1 Retainer for exhaust pipe	2P0 253 084 B	Retainer for exhaust pipe		1
9	07W 721 199 J	qty: 4 Hexagon bolt	07W 721 199 J	Hexagon bolt		4
10	23E 253 137 A	qty: 1 seal ring	23E 253 137 A	seal ring		1
11	2P0 253 143 G	qty: 1 Clamp	2P0 253 143 G	Clamp		1
12	2P0 254 253 K	qty: 1 Silencer with catalyst	2P0 254 253 K	Silencer with catalyst		1
13	23C 906 261	qty: 1 NOx-Sensor for emissions control	23C 906 261	NOx-Sensor for emissions control	615MM	1
14	N10 285 602	qty: 2 hexagon head bolt (combi)	N10 285 602	hexagon head bolt (combi)	M6X25	2
15	23C 906 207	qty: 1 Temperature sensor	23C 906 207	Temperature sensor	510MM	1
16	23C 906 207 A	qty: 1 Temperature sensor	23C 906 207 A	Temperature sensor	800MM	1
17	23C 906 207	qty: 1 Temperature sensor	23C 906 207	Temperature sensor	510MM	1
18	23B 906 389	qty: 1 Pipe	23B 906 389	Pipe		1
19	2RE 201 511	qty: 2 Clip	2RE 201 511	Clip		2
20	23C 906 051	qty: 1 Pressure sensor	23C 906 051	Pressure sensor		1
21	23C 971 003 A	qty: 1 Support element	23C 971 003 A	Support element		1
22	N10 506 402	qty: 2 hexagon head bolt (combi)	N10 506 402	hexagon head bolt (combi)	M6X27	2
23	23B 906 389 A	qty: 1 Pipe	23B 906 389 A	Pipe		1
24	N10 017 304	qty: 3 Hexagon collar nut	N10 017 304	Hexagon collar nut	M5	3
25	23E 253 198 A	qty: 3 Bracket	23E 253 198 A	Bracket		3
26	2P0 253 084 A	qty: 1 Retainer for exhaust pipe	2P0 253 084 A	Retainer for exhaust pipe		1
27	N10 156 009	qty: 2 Hex collared bolt	N10 156 009	Hex collared bolt	M8X25	2
28	N01 508 39	qty: 2 Hexagon collar nut see drawing:	N01 508 39	Hexagon collar nut see drawing:	M8 N 015 083 9	2
29	N02 090 57	qty: 6 Cable ties	N02 090 57	Cable ties	6, 5X390	6
30	23E 253 084	qty: 1 Retainer for exhaust pipe	23E 253 084	Retainer for exhaust pipe		1
31	23E 253 198	qty: 1 Bracket	23E 253 198	Bracket		1
32	N10 017 304	qty: 1 Hexagon collar nut	N10 017 304	Hexagon collar nut	M5	1
