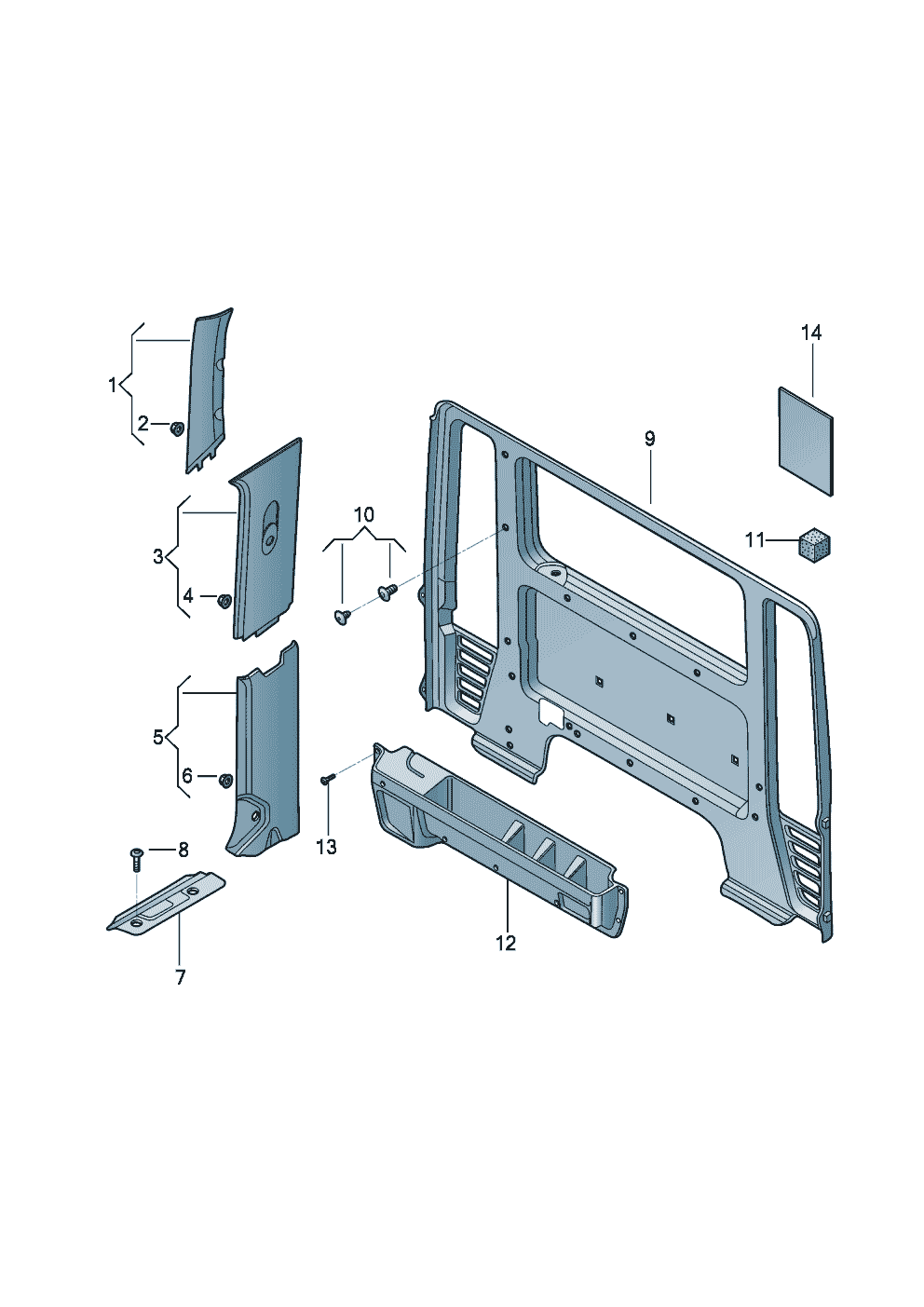

pillar trim Rear panel lid Sill trim strip
|
|
pillar trim Rear panel lid Sill trim strip
|
|
|
|
|
|
|
1 |
23B 867 233
|
qty: 1
A-pillar trim
|
23B 867 233
|
A-pillar trim
|
left |
1 |
|
|
|
|
|
23B 867 233 N A2
|
palladium grey
|
23B 867 233 N A2
|
palladium grey
|
|
|
|
|
|
|
1 |
23B 867 234
|
qty: 1
A-pillar trim
|
23B 867 234
|
A-pillar trim
|
right |
1 |
|
|
|
|
|
23B 867 234 N A2
|
palladium grey
|
23B 867 234 N A2
|
palladium grey
|
|
|
|
|
|
|
2 |
2R2 867 299
|
qty: 4
Securing pin
|
2R2 867 299
|
Securing pin
|
|
4 |
|
|
|
|
3 |
23B 867 035
|
qty: 1
Side panel trim
|
23B 867 035
|
Side panel trim
|
left upper |
1 |
|
|
|
|
|
23B 867 035 N A2
|
palladium grey
|
23B 867 035 N A2
|
palladium grey
|
|
|
|
|
|
|
3 |
23B 867 036
|
qty: 1
Side panel trim
|
23B 867 036
|
Side panel trim
|
right upper |
1 |
|
|
|
|
|
23B 867 036 N A2
|
palladium grey
|
23B 867 036 N A2
|
palladium grey
|
|
|
|
|
|
|
4 |
2R2 867 299
|
qty: 14
Securing pin
|
2R2 867 299
|
Securing pin
|
|
14 |
|
|
|
|
5 |
23B 867 035 A
|
qty: 1
Side panel trim
|
23B 867 035 A
|
Side panel trim
|
left lower |
1 |
|
|
|
|
|
23B 867 035 A NA2
|
palladium grey
|
23B 867 035 A NA2
|
palladium grey
|
|
|
|
|
|
|
5 |
23B 867 036 A
|
qty: 1
Side panel trim
|
23B 867 036 A
|
Side panel trim
|
right lower |
1 |
|
|
|
|
|
23B 867 036 A NA2
|
palladium grey
|
23B 867 036 A NA2
|
palladium grey
|
|
|
|
|
|
|
6 |
2R2 867 299
|
qty: 14
Securing pin
|
2R2 867 299
|
Securing pin
|
|
14 |
|
|
|
|
7 |
23B 857 905
|
qty: 1
Sill trim strip
|
23B 857 905
|
Sill trim strip
|
left |
1 |
|
|
|
|
|
23B 857 905 N A2
|
palladium grey
|
23B 857 905 N A2
|
palladium grey
|
|
|
|
|
|
|
7 |
23B 857 906
|
qty: 1
Sill trim strip
|
23B 857 906
|
Sill trim strip
|
right |
1 |
|
|
|
|
|
23B 857 906 N A2
|
palladium grey
|
23B 857 906 N A2
|
palladium grey
|
|
|
|
|
|
|
8 |
N10 632 102
|
qty: 4
Oval hexagon socket head bolt
|
N10 632 102
|
Oval hexagon socket head bolt
|
M6X25 |
4 |
|
|
|
|
9 |
23B 867 477
|
qty: 1
Rear panel trim
PR:4HA+5X1
|
23B 867 477
|
Rear panel trim
|
|
1 |
PR:4HA+5X1 |
|
|
|
|
23B 867 477 2 VU
|
palladium grey
|
23B 867 477 2 VU
|
palladium grey
|
|
|
|
|
|
|
9 |
23B 867 477 D
|
qty: 1
Rear panel trim
PR:4HA+5X3
|
23B 867 477 D
|
Rear panel trim
|
|
1 |
PR:4HA+5X3 |
|
|
|
|
23B 867 477 D NA2
|
palladium grey
|
23B 867 477 D NA2
|
palladium grey
|
|
|
|
|
|
|
9 |
23B 867 477 A
|
qty: 1
Rear panel trim
PR:4HM+5X1
|
23B 867 477 A
|
Rear panel trim
|
|
1 |
PR:4HM+5X1 |
|
|
|
|
23B 867 477 A 2VU
|
palladium grey
|
23B 867 477 A 2VU
|
palladium grey
|
|
|
|
|
|
|
9 |
23B 867 477 E
|
qty: 1
Rear panel trim
PR:4HM+5X3
|
23B 867 477 E
|
Rear panel trim
|
|
1 |
PR:4HM+5X3 |
|
|
|
|
23B 867 477 E NA2
|
palladium grey
|
23B 867 477 E NA2
|
palladium grey
|
|
|
|
|
|
|
10 |
2S2 867 645
|
qty: 5
Locking pin
|
2S2 867 645
|
Locking pin
|
|
5 |
|
|
|
|
|
2S2 867 645 0 33
|
Flannel grey
|
2S2 867 645 0 33
|
Flannel grey
|
|
|
|
|
|
|
11 |
23B 867 599
|
qty: 5
Reinforcement
|
23B 867 599
|
Reinforcement
|
|
5 |
|
|
|
|
12 |
23B 857 923 A
|
qty: 1
Stowage compartment
|
23B 857 923 A
|
Stowage compartment
|
rear |
1 |
|
|
|
|
|
23B 857 923 A NA2
|
palladium grey
|
23B 857 923 A NA2
|
palladium grey
|
|
|
|
|
|
|
13 |
N90 969 101
|
qty: 7
Oval hexagon socket head bolt
|
N90 969 101
|
Oval hexagon socket head bolt
|
|
7 |
|
|
|
|
14 |
23B 864 991 B
|
qty: X
Noise shield plate
|
23B 864 991 B
|
Noise shield plate
|
|
X |
|
