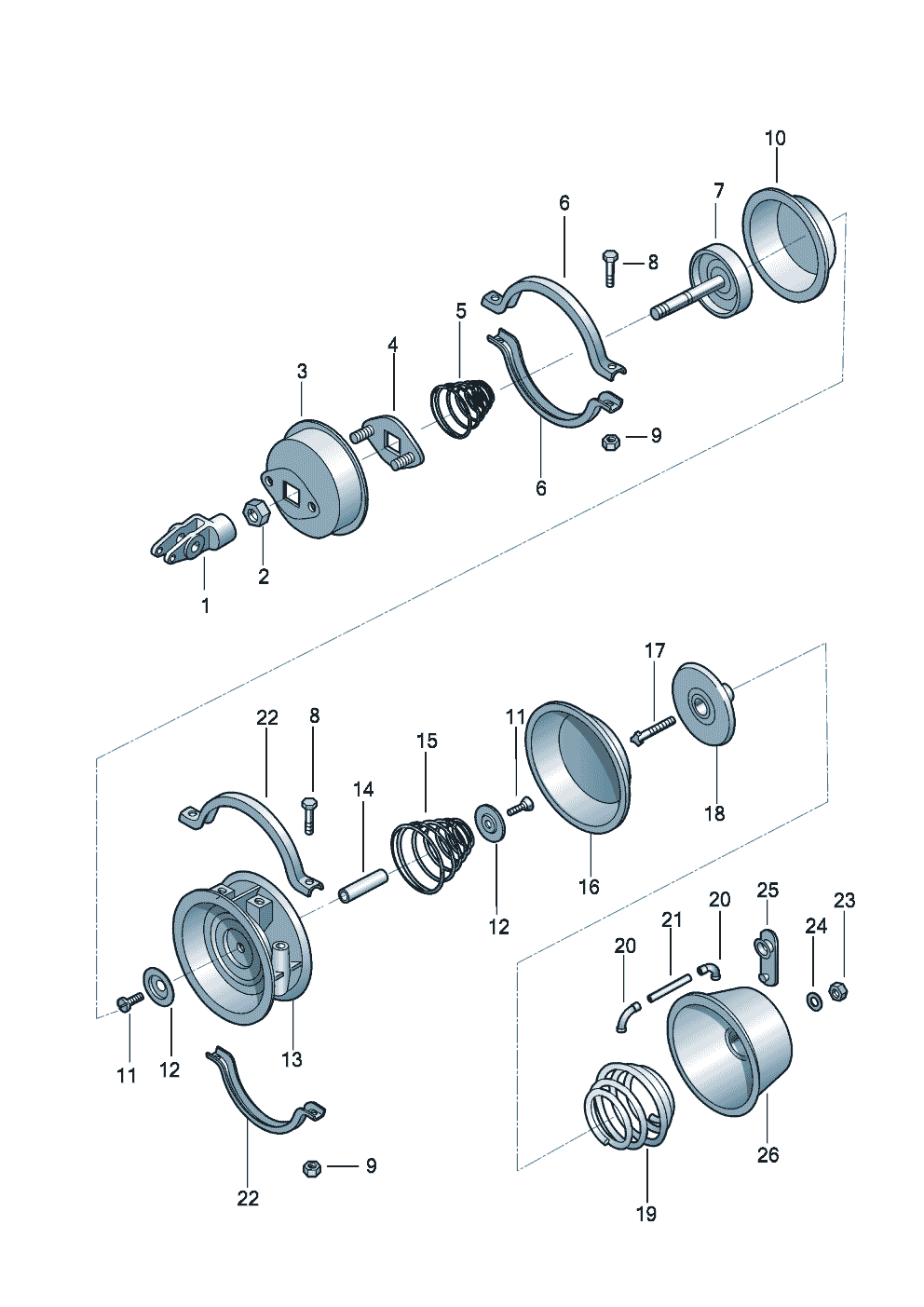

Diaphragm cylinder rear for Novo Delivery Euro V(NDE5) 2025 [EUROPE]

№	part number	information		description	remark	unit	model
		Diaphragm cylinder		Diaphragm cylinder	rear
1	2RD 607 067	qty: 1 clevis PR:0WY	2RD 607 067	clevis		1	PR:0WY
1	2R0 711 229 B	qty: 1 clevis PR:01D	2R0 711 229 B	clevis		1	PR:01D
2	2TA 607 028	qty: 1 Hexagon nut	2TA 607 028	Hexagon nut		1
3	2P0 607 091	qty: 1 Cover	2P0 607 091	Cover	front	1
4	2P0 607 899	qty: 1 Reinforcement plate	2P0 607 899	Reinforcement plate		1
5	2RD 607 965	qty: 1 Spring	2RD 607 965	Spring		1
6	2R0 607 415 A	qty: 2 brake band	2R0 607 415 A	brake band		2
7	23B 611 389	qty: 1 piston	23B 611 389	piston	16/24	1
8	2Z0 601 295	qty: 4 Hexagon bolt	2Z0 601 295	Hexagon bolt	3/8"	4
9	2Z0 611 227	qty: 4 Hexagon collar nut	2Z0 611 227	Hexagon collar nut	3/8"	4
10	2R0 611 441 B	qty: 1 diaphragm	2R0 611 441 B	diaphragm	TIPO 16	1
11	2RD 607 153	qty: 2 countersunk bolt	2RD 607 153	countersunk bolt		2
12	TJG 607 155	qty: 2 stop washer	TJG 607 155	stop washer		2
13	23B 611 113	qty: 1 housing Diaphragm cylinder	23B 611 113	housing Diaphragm cylinder	rear	1
14	2RD 607 907	qty: 1 shaft	2RD 607 907	shaft		1
15	TJG 607 959	qty: 1 Spring	TJG 607 959	Spring		1
16	2RD 607 957 A	qty: 1 diaphragm	2RD 607 957 A	diaphragm	TIPO 24	1
17	TJG 699 105	qty: 1 fillister hd. bolt	TJG 699 105	fillister hd. bolt		1
18	2RD 607 941	qty: 1 contact disc	2RD 607 941	contact disc	rear	1
19	2RD 607 953	qty: 1 Spring	2RD 607 953	Spring		1
19	23B 609 583	qty: 1 Spring	23B 609 583	Spring		1
20	2RP 607 313	qty: 2 Brake pipe	2RP 607 313	Brake pipe		2
21	2RD 607 306	qty: 1 Brake hose	2RD 607 306	Brake hose	rear	1
22	2Z0 607 415	qty: 2 Safety belt	2Z0 607 415	Safety belt	24	2
23	TJG 699 060	qty: 1 Castle nut	TJG 699 060	Castle nut		1
24	TJG 699 103	qty: 1 Washer	TJG 699 103	Washer		1
25	2RD 607 951	qty: 1 Protective cap	2RD 607 951	Protective cap		1
26	2RD 607 149	qty: 1 Cap	2RD 607 149	Cap		1
