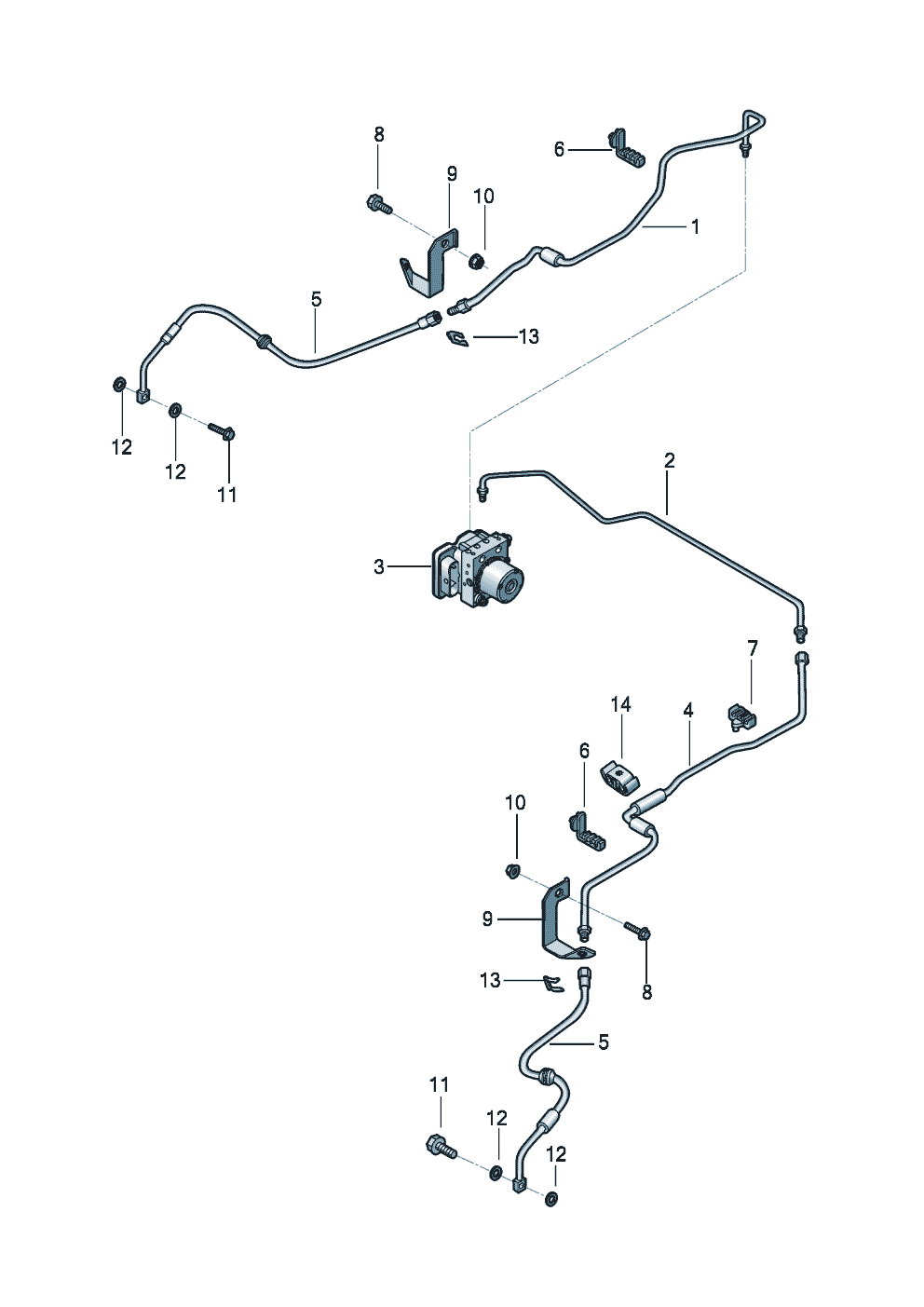

Brake pipe Brake hose front for Novo Delivery Euro V(NDE5) 2024 [EUROPE]

№	part number	information		description	remark	unit
		Brake pipe Brake hose		Brake pipe Brake hose	front
1	23B 611 721	qty: 1 Brake pipe	23B 611 721	Brake pipe	left	1
2	23B 611 725 C	qty: 1 Brake pipe	23B 611 725 C	Brake pipe	front	1
2	23B 611 725 G	qty: 1 Brake pipe	23B 611 725 G	Brake pipe	front	1
3		ABS unit see illustration, item:		ABS unit see illustration, item:	614-000, 1
4	23B 611 725 B	qty: 1 Brake pipe	23B 611 725 B	Brake pipe	right	1
5	23B 611 717 B	qty: 2 Brake hose	23B 611 717 B	Brake hose		2
5	23C 611 717	qty: 1 Brake hose	23C 611 717	Brake hose	left front	1
5	23C 611 718	qty: 1 Brake hose	23C 611 718	Brake hose	right front	1
6	23B 611 793	qty: 1 Retainer for brake pipe	23B 611 793	Retainer for brake pipe		1
7	377 611 797 F	qty: X Corrugated tube clip	377 611 797 F	Corrugated tube clip	rear	X
8	N10 661 101	qty: 2 Hex collared bolt	N10 661 101	Hex collared bolt	M12X1, 5X55	2
8	N10 628 401	qty: 2 Hex collared bolt	N10 628 401	Hex collared bolt	M12X1, 5X40	2
9	23B 611 798	qty: 1 Retainer for brake pipe	23B 611 798	Retainer for brake pipe	left	1
9	23B 611 798 A	qty: 1 Retainer for brake pipe	23B 611 798 A	Retainer for brake pipe	right	1
10	N10 106 402	qty: 2 Hexagon collar nut self-locking	N10 106 402	Hexagon collar nut self-locking	M12X1.5	2
10	N01 508 16	qty: 2 Hexagon collar nut	N01 508 16	Hexagon collar nut	M12X1.5	2
11	WHT 003 317	qty: 2 Banjo bolt	WHT 003 317	Banjo bolt		2
12	N01 381 12	qty: 4 seal ring	N01 381 12	seal ring		4
13	191 611 715	qty: 2 Hose bracket	191 611 715	Hose bracket		2
14	1J0 611 797	qty: 2 Retainer for brake pipe	1J0 611 797	Retainer for brake pipe		2
