Brand: Volkswagen-commercial
Serie: Novo Delivery Euro V
Model: Novo Delivery Euro V
Model Year: 2022

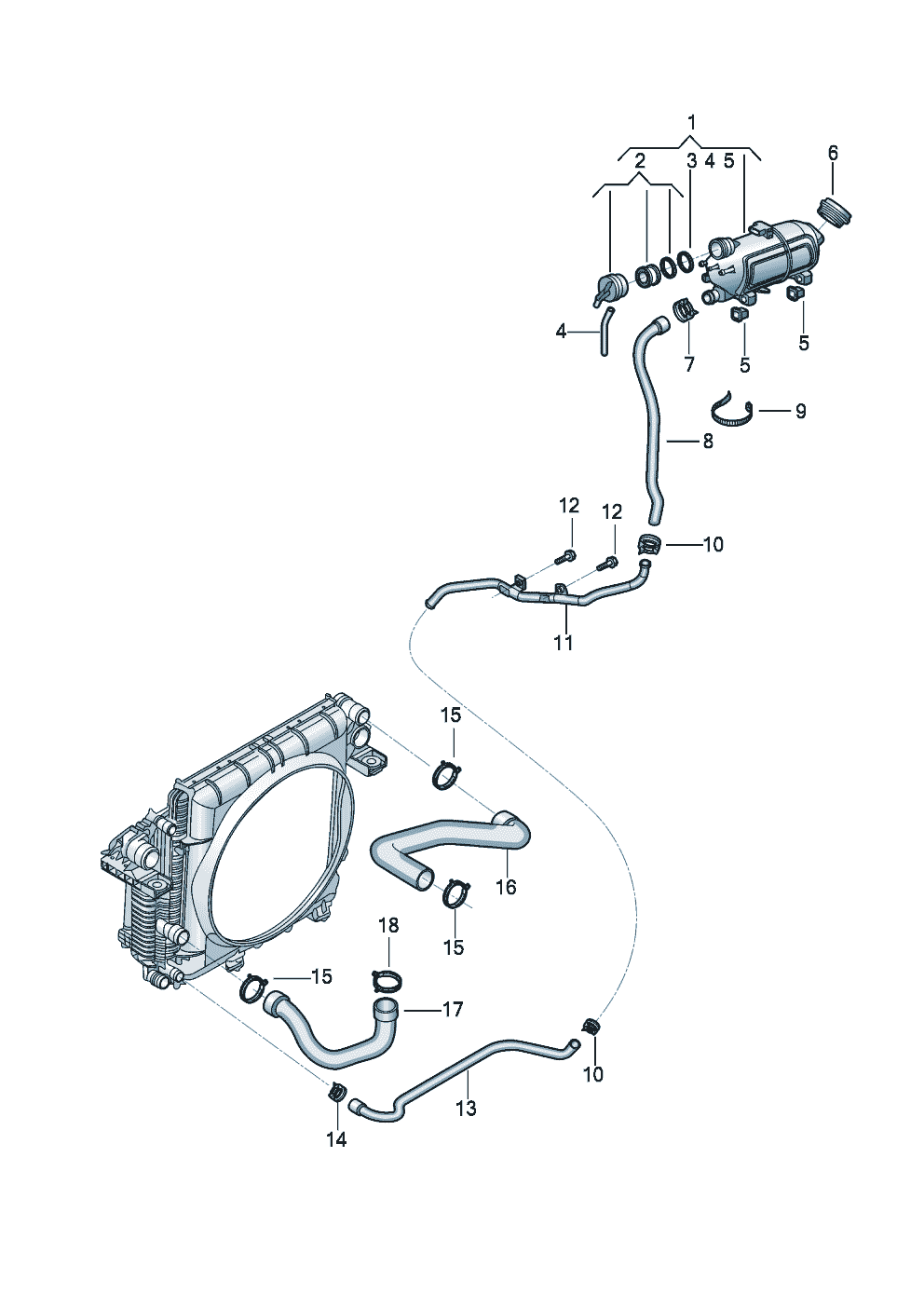

Coolant cooling system expansion chamber for Novo Delivery Euro V(NDE5) 2022 [EUROPE]

Coolant cooling system expansion chamber for Novo Delivery Euro V(NDE5) 2022 [EUROPE]
№ part number information description remark unit model
Coolant cooling system expansion chamber
PR:DY8,DY9
 Coolant cooling system expansion chamber PR:DY8,DY9
1 23B 121 405  qty: 1
expansion chamber
PR:DY8
 23B 121 405  expansion chamber 1 PR:DY8
1 23B 121 405 A  qty: 1
expansion chamber
PR:DY9
 23B 121 405 A  expansion chamber 1 PR:DY9
2 23B 121 168  qty: 1
Controller lid
23B 121 168  Controller lid 0, 9 BAR 1
3 WHT 009 160  qty: 1
O-ring
WHT 009 160  O-ring 1
4 23B 121 692  qty: 1
Hose
23B 121 692  Hose 1
5 23B 121 215  qty: 4
retaining piece expansion chamber
23B 121 215  retaining piece expansion chamber 4
6 1J0 121 321 B  qty: 1
End cap
1J0 121 321 B  End cap 1, 4 BAR 1
7 N90 655 801  qty: 1
Spring band clamp
N90 655 801  Spring band clamp 40X12 1
8 23B 121 103 E  qty: 1
Coolant hose
23B 121 103 E  Coolant hose 1
9 3D0 971 838 D  qty: 1
Cable ties for sheet metal thickness:
3D0 971 838 D  Cable ties for sheet metal thickness: 4, 6X200 1-3MM 1
10 2S0 145 687  qty: 2
Clip
2S0 145 687  Clip 2
11 23B 121 481 C  qty: 1
Coolant pipe
23B 121 481 C  Coolant pipe 1
12 N01 953 15  qty: 2
Hex collared bolt
N01 953 15  Hex collared bolt M8X40 2
13 23B 121 103 B  qty: 1
Coolant hose
23B 121 103 B  Coolant hose 1
14 2TJ 607 139  qty: 1
Clamp
2TJ 607 139  Clamp 1
15 2RE 121 255 C  qty: 3
Clamp
2RE 121 255 C  Clamp 3
16 23B 121 101 A  qty: 1
Coolant hose
23B 121 101 A  Coolant hose upper 1
17 23B 121 102 F  qty: 1
Coolant hose
23B 121 102 F  Coolant hose lower 1
18 2RE 121 255 D  qty: 1
Clamp
2RE 121 255 D  Clamp 60MM 1
