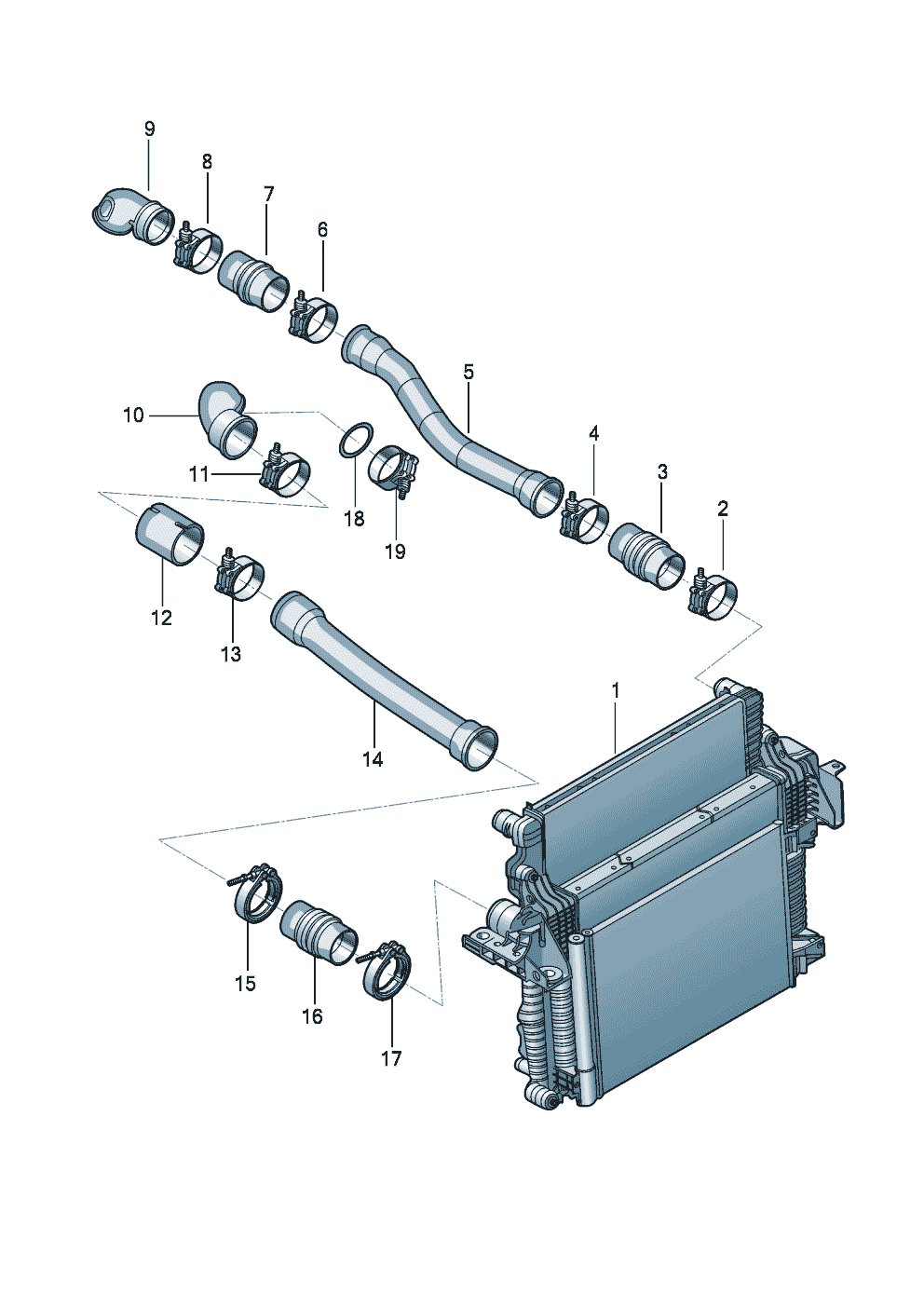

Charge air cooler for Novo Delivery Euro V(NDE5) 2021 [EUROPE]

№	part number	information		description	remark	unit	model
		Charge air cooler		Charge air cooler
1		Charge air cooler see illustration:		Charge air cooler see illustration:	CAC 121-060
1		Cooler for coolant see illustration:		Cooler for coolant see illustration:	121-060
1		Condenser see illustration: PR:9AB		Condenser see illustration:	820-050		PR:9AB
2	2RE 117 273 A	qty: 1 Clip	2RE 117 273 A	Clip	60MM	1
3	23B 145 593 A	qty: 1 Hose	23B 145 593 A	Hose		1
4	2RE 117 273 A	qty: 1 Clip	2RE 117 273 A	Clip	60MM	1
5	23B 145 594 A	qty: 1 Air pipe	23B 145 594 A	Air pipe		1
6	2R0 129 142	qty: 1 Clip	2R0 129 142	Clip		1
7	23B 145 828 B	qty: 1 air hose	23B 145 828 B	air hose		1
7	2S0 145 828	qty: 1 air hose	2S0 145 828	air hose		1
8	2R0 129 142	qty: 1 Clip	2R0 129 142	Clip		1
9		Intake manifold see illustration:		Intake manifold see illustration:	129-060
10	23B 129 738 A	qty: 1 Air pipe	23B 129 738 A	Air pipe		1
11	2R0 129 142	qty: 1 Clip	2R0 129 142	Clip		1
12	2S0 145 828	qty: 1 air hose	2S0 145 828	air hose		1
13	2R0 129 142	qty: 1 Clip	2R0 129 142	Clip		1
14	23B 145 844 A	qty: 1 Air pipe	23B 145 844 A	Air pipe		1
15	2RE 117 273 A	qty: 1 Clip	2RE 117 273 A	Clip	60MM	1
16	23B 145 593 E	qty: 1 Hose	23B 145 593 E	Hose		1
17	2RE 117 273 A	qty: 1 Clip	2RE 117 273 A	Clip	60MM	1
18	23B 130 421	qty: 1 Clip	23B 130 421	Clip		1
19	2R0 906 149 C	qty: 1 seal ring	2R0 906 149 C	seal ring		1
