Window regulator Window guide Window aperture seal
|
|
Window regulator Window guide Window aperture seal
|
|
|
|
|
|
|
1 |
23B 837 703
|
qty: 1
Window aperture seal
|
23B 837 703
|
Window aperture seal
|
left |
1 |
|
|
|
|
1 |
23B 837 704
|
qty: 1
Window aperture seal
|
23B 837 704
|
Window aperture seal
|
right |
1 |
|
|
|
|
1 |
23B 837 703 C
|
qty: 1
Window aperture seal
|
23B 837 703 C
|
Window aperture seal
|
left |
1 |
|
|
|
|
1 |
23B 837 704 C
|
qty: 1
Window aperture seal
|
23B 837 704 C
|
Window aperture seal
|
right |
1 |
|
|
|
|
2 |
23B 837 913
|
qty: 1
Door seal
|
23B 837 913
|
Door seal
|
left upper |
1 |
|
|
|
|
2 |
23B 837 914
|
qty: 1
Door seal
|
23B 837 914
|
Door seal
|
right upper |
1 |
|
|
|
|
2 |
23B 837 913 C
|
qty: 1
Door seal
|
23B 837 913 C
|
Door seal
|
left upper |
1 |
|
|
|
|
2 |
23B 837 914 C
|
qty: 1
Door seal
|
23B 837 914 C
|
Door seal
|
right upper |
1 |
|
|
|
|
3 |
23B 831 643
|
qty: 1
Guide rail
|
23B 831 643
|
Guide rail
|
left upper |
1 |
|
|
|
|
3 |
23B 831 644
|
qty: 1
Guide rail
|
23B 831 644
|
Guide rail
|
right upper |
1 |
|
|
|
|
4 |
N10 657 501
|
qty: X
oval head panel screw
|
N10 657 501
|
oval head panel screw
|
ST3, 5X13 |
X |
|
|
|
|
5 |
23B 831 645
|
qty: 1
Guide rail
|
23B 831 645
|
Guide rail
|
left rear |
1 |
|
|
|
|
5 |
23B 831 489
|
qty: 1
Guide rail
|
23B 831 489
|
Guide rail
|
right rear |
1 |
|
|
|
|
6 |
23B 837 705
|
qty: 1
window guide with window slot seal
|
23B 837 705
|
window guide with window slot seal
|
left |
1 |
|
|
|
|
6 |
23B 837 705 B
|
qty: 1
window guide with window slot seal
|
23B 837 705 B
|
window guide with window slot seal
|
left |
1 |
|
|
|
|
6 |
23B 837 706
|
qty: 1
window guide with window slot seal
|
23B 837 706
|
window guide with window slot seal
|
right |
1 |
|
|
|
|
6 |
23B 837 705 B
|
qty: 2
window guide with window slot seal
|
23B 837 705 B
|
window guide with window slot seal
|
|
2 |
|
|
|
|
6 |
23B 837 705 C
|
qty: 2
window guide with window slot seal
|
23B 837 705 C
|
window guide with window slot seal
|
|
2 |
|
|
|
|
7 |
23B 831 291
|
qty: 1
Guide rail
|
23B 831 291
|
Guide rail
|
left front |
1 |
|
|
|
|
7 |
23B 831 292
|
qty: 1
Guide rail
|
23B 831 292
|
Guide rail
|
right front |
1 |
|
|
|
|
8 |
N91 020 101
|
qty: 4
Hexagon socket head bolt
|
N91 020 101
|
Hexagon socket head bolt
|
M6X14 |
4 |
|
|
|
|
9 |
23B 837 439
|
qty: 1
Rubber gaiter Lift rail
|
23B 837 439
|
Rubber gaiter Lift rail
|
left |
1 |
|
|
|
|
9 |
23B 837 440
|
qty: 1
Rubber gaiter Lift rail
|
23B 837 440
|
Rubber gaiter Lift rail
|
right |
1 |
|
|
|
|
9 |
23B 837 439 C
|
qty: 1
Rubber gaiter Lift rail
|
23B 837 439 C
|
Rubber gaiter Lift rail
|
left |
1 |
|
|
|
|
9 |
23B 837 440 C
|
qty: 1
Rubber gaiter Lift rail
|
23B 837 440 C
|
Rubber gaiter Lift rail
|
right |
1 |
|
|
|
|
10 |
N90 453 703
|
qty: 24
rivetted cap nut
|
N90 453 703
|
rivetted cap nut
|
M6X0, 5-3 |
24 |
|
|
|
|
11 |
N10 618 501
|
qty: 2
rivetted cap nut
|
N10 618 501
|
rivetted cap nut
|
M6/0, 5-3 |
2 |
|
|
|
|
12 |
N10 661 001
|
qty: 2
Hexagon socket head bolt
|
N10 661 001
|
Hexagon socket head bolt
|
M6X20 |
2 |
|
|
|
|
13 |
23B 837 501
|
qty: 1
Window regulator
PR:4R0
|
23B 837 501
|
Window regulator
|
left |
1 |
PR:4R0 |
|
|
|
13 |
23B 837 502
|
qty: 1
Window regulator
PR:4R0
|
23B 837 502
|
Window regulator
|
right |
1 |
PR:4R0 |
|
|
|
13 |
23B 837 399
|
qty: 1
window regulator electrically operated
PR:4R1
|
23B 837 399
|
window regulator electrically operated
|
left |
1 |
PR:4R1 |
|
|
|
13 |
23B 837 400
|
qty: 1
window regulator electrically operated
PR:4R1
|
23B 837 400
|
window regulator electrically operated
|
right |
1 |
PR:4R1 |
|
|
|
14 |
N10 009 506
|
qty: 4
hexagon head bolt (combi)
|
N10 009 506
|
hexagon head bolt (combi)
|
M6X18 |
4 |
|
|
|
|
15 |
23B 831 333
|
qty: 1
Carrier plate
|
23B 831 333
|
Carrier plate
|
left |
1 |
|
|
|
|
15 |
23B 831 334
|
qty: 1
Carrier plate
|
23B 831 334
|
Carrier plate
|
right |
1 |
|
|
|
|
16 |
N91 042 301
|
qty: 20
Oval hexagon socket head bolt
|
N91 042 301
|
Oval hexagon socket head bolt
|
M6X16 |
20 |
|
|
|
|
17 |
N10 009 506
|
qty: 2
hexagon head bolt (combi)
|
N10 009 506
|
hexagon head bolt (combi)
|
M6X18 |
2 |
|
|
|
|
18 |
N01 508 210
|
qty: 8
Hexagon collar nut
|
N01 508 210
|
Hexagon collar nut
|
|
8 |
|
|
|
|
19 |
23B 837 798
|
qty: 2
Bungs
PR:4R1
|
23B 837 798
|
Bungs
|
Round |
2 |
PR:4R1 |
|
|
|
20 |
2R2 972 840
|
qty: 4
Bungs
|
2R2 972 840
|
Bungs
|
oval |
4 |
|
|
|
|
21 |
5X0 837 581
|
qty: 2
window crank
PR:4R0
|
5X0 837 581
|
window crank
|
|
2 |
PR:4R0 |
|
|
|
|
5X0 837 581 N A2
|
palladium grey
|
5X0 837 581 N A2
|
palladium grey
|
|
|
|
|
|
|
22 |
2R0 837 564
|
qty: 2
Distance piece
|
2R0 837 564
|
Distance piece
|
|
2 |
|
|
|
|
23 |
2P0 803 583
|
qty: 5
Bungs
|
2P0 803 583
|
Bungs
|
7, 5 |
5 |
|

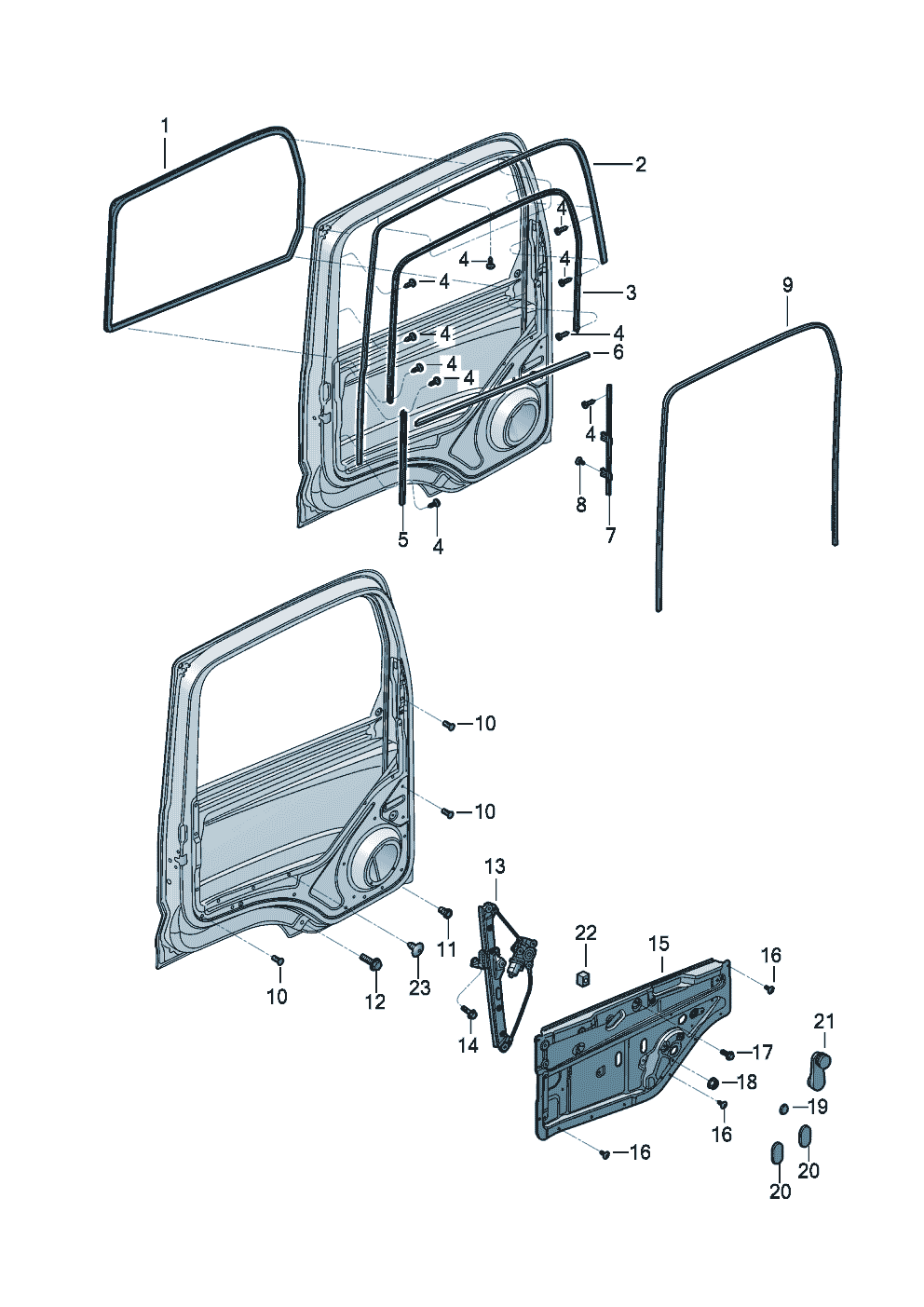

![Window regulator Window guide Window aperture seal for Novo Delivery Euro V(NDE5) 2020 [EUROPE]](https://img.7zap.com/images/oem/vag2410/ML/Bilder_zgd/569/569837600.png "Window regulator Window guide Window aperture seal for Novo Delivery Euro V(NDE5) 2020 [EUROPE]")
