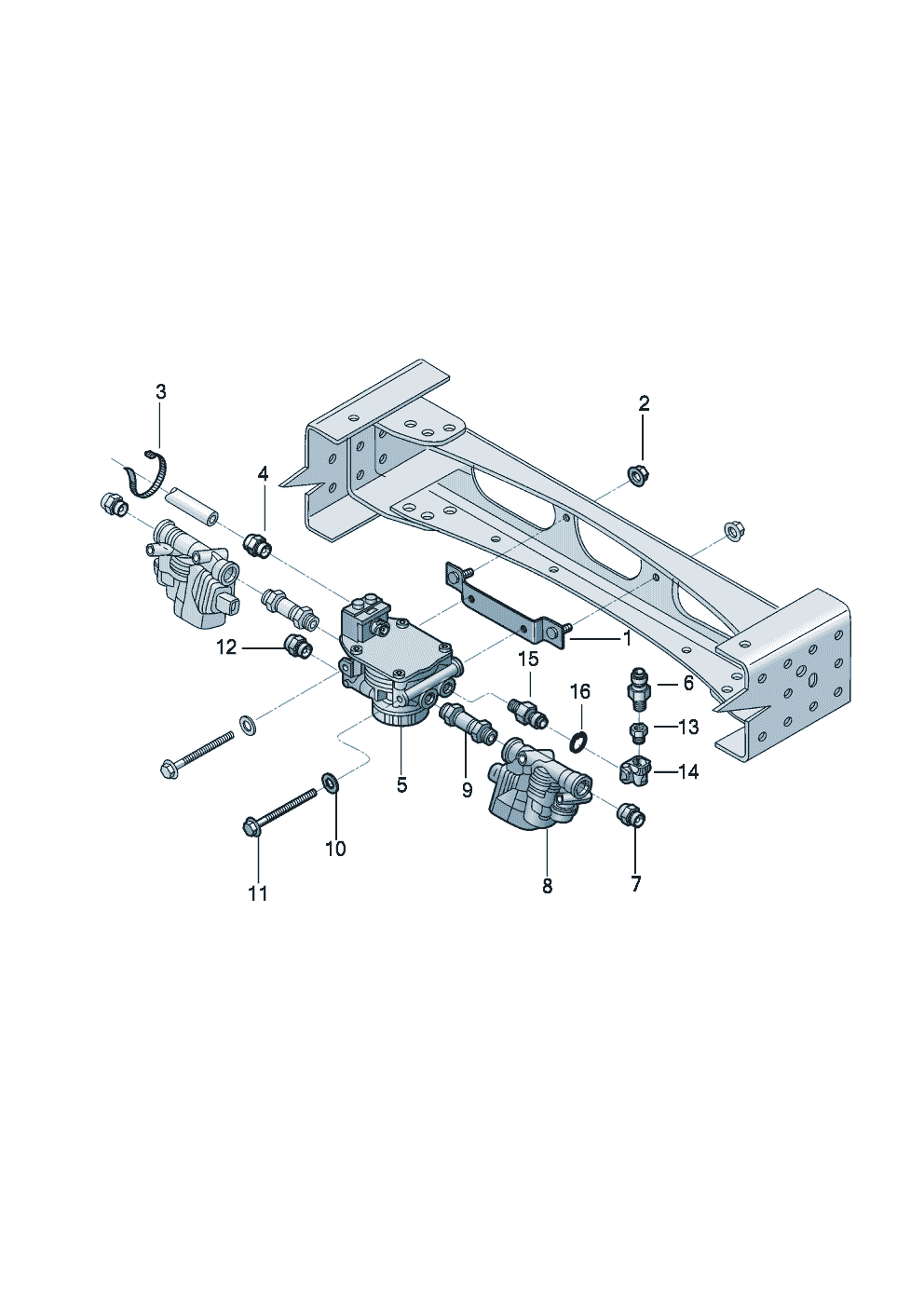

Valve Pressure regulating valve Coupling element FAM for Micro-Onibus Euro VI(MIO6) 2025 [EUROPE]

№	part number	information		description	remark	unit
		Valve Pressure regulating valve Coupling element		Valve Pressure regulating valve Coupling element	FAM
1	23F 607 879 C	qty: 1 Support plate	23F 607 879 C	Support plate		1
2	N10 272 302	qty: 2 Hexagon collar nut self-locking	N10 272 302	Hexagon collar nut self-locking	M10	2
3	N02 090 57	qty: 1 Cable ties	N02 090 57	Cable ties	6, 5X390	1
4	23B 607 085	qty: 1 Hose connector	23B 607 085	Hose connector	8MM M16X1, 5	1
5	2V1 607 359 B	qty: 1 Valve	2V1 607 359 B	Valve	FAM	1
6	2S2 947 561	qty: 1 Switch	2S2 947 561	Switch		1
7	23B 607 085 Q	qty: 2 Hose connector	23B 607 085 Q	Hose connector	12MM M22X1, 5	2
8	2V1 607 262	qty: 2 Pressure regulating valve	2V1 607 262	Pressure regulating valve		2
8	2V3 607 262 B	qty: 2 Pressure regulating valve	2V3 607 262 B	Pressure regulating valve		2
9	23B 607 815	qty: 2 Adapter	23B 607 815	Adapter	M22XM22	2
10	N01 167 06	qty: 2 Washer	N01 167 06	Washer		2
11	TJG 199 807	qty: 2 Hexagon bolt	TJG 199 807	Hexagon bolt	M8X120	2
12	23B 607 085 Q	qty: 1 Hose connector	23B 607 085 Q	Hose connector	12MM M22X1, 5	1
13	23B 607 085 A H	qty: 1 Coupling element	23B 607 085 A H	Coupling element		1
14	23B 607 085 A J	qty: 1 Coupling element	23B 607 085 A J	Coupling element	90 degree angle	1
15	23B 607 085 R	qty: 1 push-on connector	23B 607 085 R	push-on connector	M16X1, 5	1
16	23B 607 085 N	qty: 1 Turning lock	23B 607 085 N	Turning lock		1
16	23B 607 085 A L	qty: 1 push-on connector	23B 607 085 A L	push-on connector		1
