Brand: Volkswagen-commercial
Serie: Micro-Onibus Euro VI
Model: Micro-Onibus Euro VI
Engine: -
Model Year: 2025
Date of manufacture: -
Transmission: -

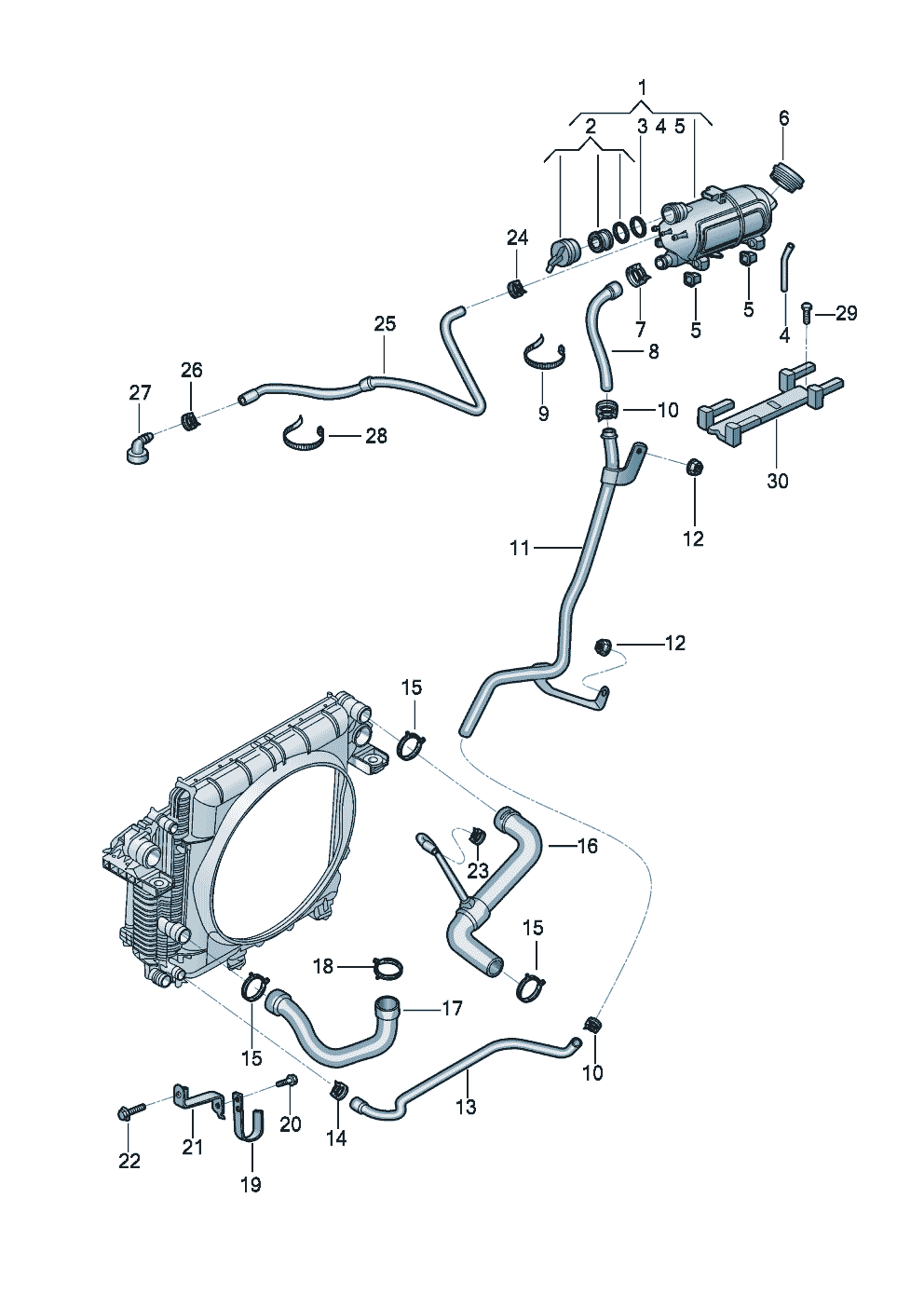

Coolant cooling system expansion chamber for Micro-Onibus Euro VI(MIO6) 2025 [EUROPE]

Coolant cooling system expansion chamber for Micro-Onibus Euro VI(MIO6) 2025 [EUROPE]
№ part number information description remark unit model
Coolant cooling system expansion chamber
Coolant cooling system expansion chamber
1 23B 121 405 A  qty: 1
expansion chamber
23B 121 405 A  expansion chamber 1
2 23B 121 168  qty: 1
Controller lid
23B 121 168  Controller lid 0, 9 BAR 1
3 WHT 009 160  qty: 1
O-ring
WHT 009 160  O-ring 1
4 23B 121 692  qty: 1
Hose
23B 121 692  Hose 1
5 23B 121 215  qty: 4
retaining piece expansion chamber
23B 121 215  retaining piece expansion chamber 4
6 1J0 121 321 B  qty: 1
End cap
1J0 121 321 B  End cap 1, 4 BAR 1
7 N90 655 801  qty: 1
Spring band clamp
N90 655 801  Spring band clamp 40X12 1
8 23F 121 103 A  qty: 1
Coolant hose
23F 121 103 A  Coolant hose 1
9 2T2 121 477 A  qty: 1
Corrugated tube clip
2T2 121 477 A  Corrugated tube clip 1
10 2RE 145 425 A  qty: 2
Clip
2RE 145 425 A  Clip 2
11 23F 121 481  qty: 1
Coolant pipe
23F 121 481  Coolant pipe 1
12 N10 272 302  qty: 2
Hexagon collar nut self-locking
N10 272 302  Hexagon collar nut self-locking M10 2
13 23B 121 103 A  qty: 1
Coolant hose
23B 121 103 A  Coolant hose 1
14 2RE 145 425 A  qty: 1
Clip
2RE 145 425 A  Clip 1
15 2RE 121 255 C  qty: 3
Clamp
2RE 121 255 C  Clamp 3
16 23F 121 101  qty: 1
Coolant hose
23F 121 101  Coolant hose upper 1
17 23F 121 102  qty: 1
Coolant hose
23F 121 102  Coolant hose lower 1
18 2RE 121 255 D  qty: 1
Clamp
2RE 121 255 D  Clamp 60MM 1
19 2T2 609 719 E  qty: 1
bracket for suction hose
2T2 609 719 E  bracket for suction hose 1
20 N10 653 102  qty: 1
Hexagon bolt
N10 653 102  Hexagon bolt M8X20 1
21 23F 121 724  qty: 1
Clamp strip
23F 121 724  Clamp strip 1
22 N90 708 504  qty: 1
Hex collared bolt
N90 708 504  Hex collared bolt M12X1, 5X35 1
23 237 611 987 2  qty: 1
Spring band clamp
237 611 987 2  Spring band clamp 200MM 1
24 2TE 121 255  qty: 1
clamp
2TE 121 255  clamp 15MM 1
25 23F 121 625  qty: 1
Hose
23F 121 625  Hose 1
26 2RE 121 255  qty: 1
Clamp
2RE 121 255  Clamp 1
27 22B 201 100  qty: 1
Quick acting coupling
22B 201 100  Quick acting coupling 90 degree
angle 		1
28 2TA 265 220  qty: 1
Corrugated tube clip
2TA 265 220  Corrugated tube clip 4, 7X395 1
29 N10 653 301  qty: 4
Hex collared bolt
N10 653 301  Hex collared bolt M6X20 4
30 2W0 121 409 B  qty: 1
Bracket
2W0 121 409 B  Bracket 1
