Brand: Volkswagen-commercial
Serie: Micro-Onibus Euro VI
Model: Micro-Onibus Euro VI
Engine: -
Model Year: 2023
Date of manufacture: -
Transmission: -

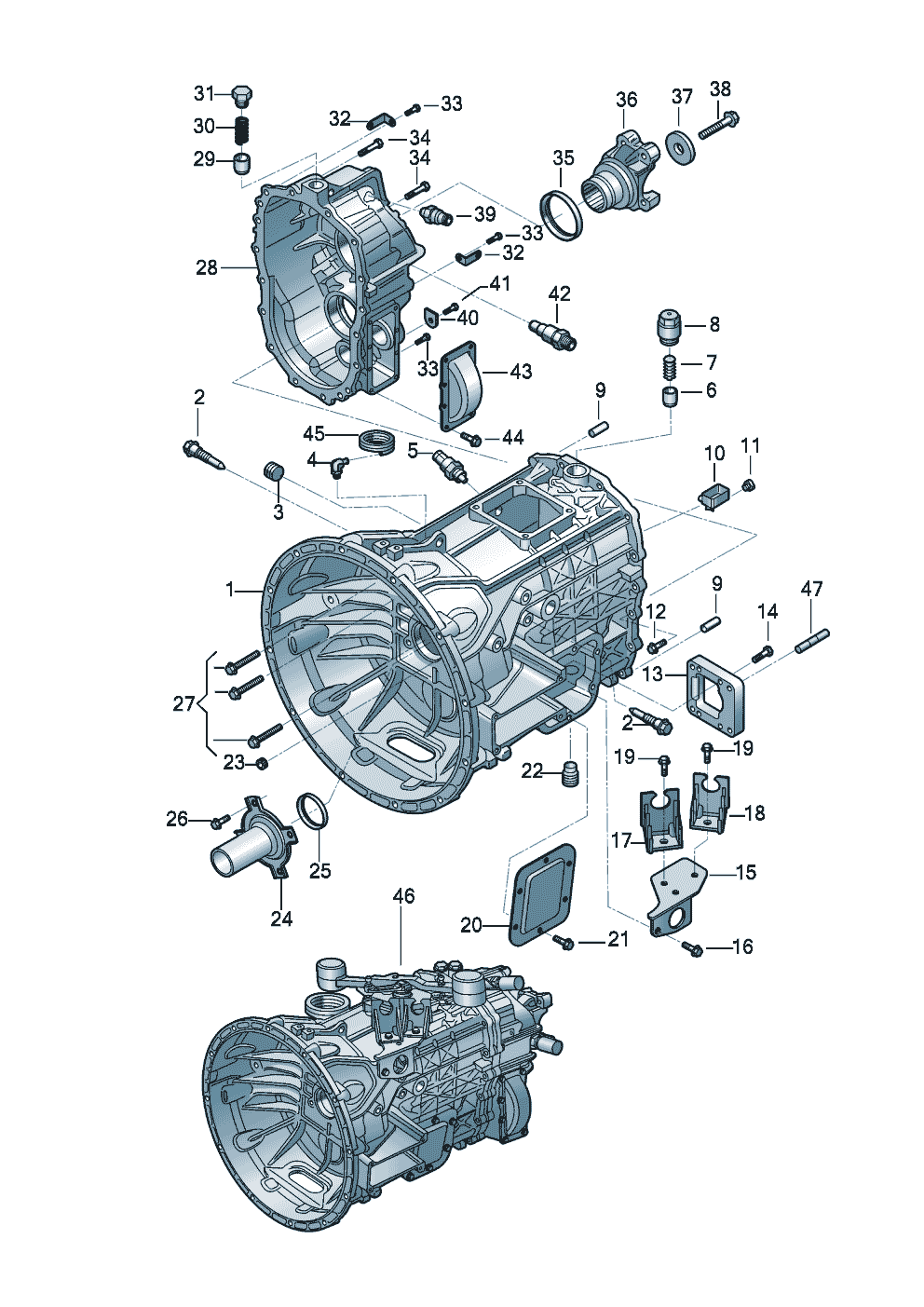

Gear housing ESBO-6206 for Micro-Onibus Euro VI(MIO6) 2023 [EUROPE]

Gear housing ESBO-6206 for Micro-Onibus Euro VI(MIO6) 2023 [EUROPE]
№ part number information description remark unit model
Gear housing
PR:G0K
 Gear housing ESBO-6206 PR:G0K
1 23F 301 105  qty: 1
Gear housing
23F 301 105  Gear housing 1
2 23B 301 366  qty: 2
Pin Gearbox
23B 301 366  Pin Gearbox 2
3 T06 301 127 A  qty: 1
Bungs
T06 301 127 A  Bungs 1
4 23B 301 314  qty: 1
Adapter
23B 301 314  Adapter 90 degree
angle 		1
5 2V2 919 823  qty: 2
Switch
2V2 919 823  Switch NEUTRO 2
6 2R0 321 143 B  qty: 1
Cylinder pin
2R0 321 143 B  Cylinder pin 1
7 23B 301 338  qty: 1
Coil spring
23B 301 338  Coil spring 1
8 23B 301 379  qty: 1
gear selector
23B 301 379  gear selector SELECAO 1
9 2RD 301 095  qty: 2
dowel sleeve
2RD 301 095  dowel sleeve 2
10 23B 301 579  qty: 1
catch plate
23B 301 579  catch plate OLEO 1
11 23B 301 340  qty: 1
Hexagon socket head bolt
23B 301 340  Hexagon socket head bolt M6X6, 5 1
12 2R0 301 331  qty: 3
Hexagon bolt
2R0 301 331  Hexagon bolt 3
13 23B 721 400  qty: 1
Spacer plate
23B 721 400  Spacer plate 1
14 23B 721 489  qty: 4
Spindle
23B 721 489  Spindle M6X25 4
15 23B 711 156 C  qty: 1
Retainer for cable pull
23B 711 156 C  Retainer for cable pull 1
16 2RD 301 903 B  qty: 1
Hexagon bolt
2RD 301 903 B  Hexagon bolt 1
17 23B 711 157  qty: 1
Retainer for cable pull
23B 711 157  Retainer for cable pull SELECAO 1
18 23B 711 157 A  qty: 1
Retainer for cable pull
23B 711 157 A  Retainer for cable pull ENGATE 1
19 2R0 301 340 C  qty: 2
Hexagon bolt
2R0 301 340 C  Hexagon bolt 2
20 2RD 301 135  qty: 1
Sealing plate
2RD 301 135  Sealing plate 1
21 23B 301 340 A  qty: 6
Hexagon bolt
23B 301 340 A  Hexagon bolt M10X16 6
22 2RD 311 467  qty: 1
Magnet
2RD 311 467  Magnet 1
23 2RD 312 005 B  qty: 1
Bungs
2RD 312 005 B  Bungs 1
24 23B 311 441 B  qty: 1
Cover
23B 311 441 B  Cover 1
25 2R0 311 189 C  qty: 1
seal ring
2R0 311 189 C  seal ring 1
25 23B 311 189 C  qty: 1
Shaft oil seal
23B 311 189 C  Shaft oil seal 1
26 2R0 301 340 C  qty: 4
Hexagon bolt
2R0 301 340 C  Hexagon bolt 4
27 2R0 311 511 C  qty: 3
Hexagon bolt
2R0 311 511 C  Hexagon bolt 3
28 23B 301 373  qty: 1
Cover
23B 301 373  Cover 1
29 2R0 321 143 B  qty: 1
Cylinder pin
2R0 321 143 B  Cylinder pin 1
30 23B 301 338 B  qty: 1
Coil spring
23B 301 338 B  Coil spring 1
31 23B 301 141 A  qty: 1
sealing plug
23B 301 141 A  sealing plug 1
32 2R0 317 063 A  qty: 2
Corrugated tube clip
2R0 317 063 A  Corrugated tube clip 2
33 2R0 301 331  qty: 13
Hexagon bolt
2R0 301 331  Hexagon bolt 13
34 2R0 311 511 C  qty: 2
Hexagon bolt
2R0 311 511 C  Hexagon bolt 2
35 2R0 311 189 B  qty: 1
radial shaft seal
2R0 311 189 B  radial shaft seal 1
35 23B 311 189 B  qty: 1
Oil channel sump
23B 311 189 B  Oil channel sump 1
36 23B 311 809  qty: 1
clevis Gearbox
23B 311 809  clevis Gearbox PR-0WY 1
36 23B 311 809 C  qty: 1
clevis Gearbox
23B 311 809 C  clevis Gearbox PR-0WY 1
36 23B 311 809 A  qty: 1
clevis Gearbox
23B 311 809 A  clevis Gearbox PR-01D 1
37 2R0 311 545 A  qty: 1
Cup washer
2R0 311 545 A  Cup washer 1
38 2R0 301 340 J  qty: 1
Hexagon bolt
2R0 301 340 J  Hexagon bolt 1
39 2V2 919 823  qty: 1
Switch
2V2 919 823  Switch NEUTRO 1
40 23B 301 857  qty: 1
Support plate
23B 301 857  Support plate 1
41 2R0 301 340 F  qty: 1
Hexagon bolt
2R0 301 340 F  Hexagon bolt 1
42 2R0 311 478 D  qty: 1
speed sensor
2R0 311 478 D  speed sensor 1
43 23B 301 252  qty: 1
Cover transfer box housing
23B 301 252  Cover transfer box housing 1
44 23B 301 340 C  qty: 8
Hexagon bolt
23B 301 340 C  Hexagon bolt M6X14 8
45 23B 311 528 A  qty: 1
Pipe
23B 311 528 A  Pipe 1
46 23F 300 041 C  qty: 1
gearbox, complete
23F 300 041 C  gearbox, complete ESBO-6206 1
47 TAE 711 101  qty: 4
Hexagon bolt
TAE 711 101  Hexagon bolt M8X20 4
