suspension
|
|
suspension
|
rear |
|
|
|
|
|
1 |
|
spring leaf see illustration:
|
|
spring leaf see illustration:
|
511-050 |
|
|
|
|
|
2 |
23B 511 716 B
|
qty: 2
spring bush
|
23B 511 716 B
|
spring bush
|
front |
2 |
|
|
|
|
3 |
N10 824 801
|
qty: X
Hexagon flange screw
|
N10 824 801
|
Hexagon flange screw
|
M12X1, 5X65 |
X |
|
|
|
|
4 |
N10 106 402
|
qty: X
Hexagon collar nut self-locking
|
N10 106 402
|
Hexagon collar nut self-locking
|
M12X1.5 |
X |
|
|
|
|
5 |
N91 242 001
|
qty: 2
Hex collared bolt
|
N91 242 001
|
Hex collared bolt
|
|
2 |
|
|
|
|
6 |
23B 511 415
|
qty: 2
locking sleeve
|
23B 511 415
|
locking sleeve
|
|
2 |
|
|
|
|
7 |
N10 240 304
|
qty: 2
Hexagon collar nut
|
N10 240 304
|
Hexagon collar nut
|
M14X1, 5 |
2 |
|
|
|
|
8 |
N10 742 901
|
qty: 2
Hex collared bolt
|
N10 742 901
|
Hex collared bolt
|
M14X1, 5X120X90 |
2 |
|
|
|
|
9 |
2TB 499 151
|
qty: 2
Cage nut
|
2TB 499 151
|
Cage nut
|
M18X1, 5 |
2 |
|
|
|
|
10 |
N10 824 801
|
qty: X
Hexagon flange screw
|
N10 824 801
|
Hexagon flange screw
|
M12X1, 5X65 |
X |
|
|
|
|
11 |
|
clamping strip for battery Not for this model
|
|
clamping strip for battery Not for this model
|
|
|
|
|
|
|
12 |
N91 243 902
|
qty: X
Spindle
|
N91 243 902
|
Spindle
|
M12X1, 5X55 |
X |
|
|
|
|
12 |
N10 861 801
|
qty: X
Hexagon flange screw
|
N10 861 801
|
Hexagon flange screw
|
M12X1, 5X45 |
X |
|
|
|
|
13 |
23F 599 173
|
qty: 4
Clip
|
23F 599 173
|
Clip
|
435MM |
4 |
|
|
|
|
14 |
23B 599 175
|
qty: 2
Carrier plate
|
23B 599 175
|
Carrier plate
|
|
2 |
|
|
|
|
15 |
|
Spring support plate see illustration, item:
|
|
Spring support plate see illustration, item:
|
501-000, 33 |
|
|
|
|
|
16 |
|
Spring support plate see illustration, item:
|
|
Spring support plate see illustration, item:
|
513-010, 4 |
|
|
|
|
|
17 |
N91 241 501
|
qty: 8
Hexagon collar nut
|
N91 241 501
|
Hexagon collar nut
|
M18X1.5 |
8 |
|
|
|
|
18 |
23F 511 419
|
qty: 2
bracket for anti-roll bar
|
23F 511 419
|
bracket for anti-roll bar
|
|
2 |
|
|
|
|
19 |
N10 585 602
|
qty: 4
Hex collared bolt
|
N10 585 602
|
Hex collared bolt
|
M14X1, 5X95 |
4 |
|
|
|
|
20 |
N10 401 801
|
qty: 2
Hexagon collar nut
|
N10 401 801
|
Hexagon collar nut
|
M14X1, 5 |
2 |
|
|
|
|
21 |
23B 511 135
|
qty: 2
spring bush
|
23B 511 135
|
spring bush
|
rear |
2 |
|
|
|
|
22 |
23B 411 719 D
|
qty: 2
Grommet
|
23B 411 719 D
|
Grommet
|
|
2 |
|
|
|
|
23 |
N91 240 701
|
qty: 4
Hex collared bolt
|
N91 240 701
|
Hex collared bolt
|
M18X1.5X120 |
4 |
|
|
|
|
24 |
23B 599 196
|
qty: 2
Spring strap
|
23B 599 196
|
Spring strap
|
|
2 |
|
|
|
|
25 |
23B 599 195
|
qty: 2
Spring strap clamp with thread
|
23B 599 195
|
Spring strap clamp with thread
|
|
2 |
|
|
|
|
26 |
23B 701 693
|
qty: 2
Reinforcement
|
23B 701 693
|
Reinforcement
|
|
2 |
|
|
|
|
27 |
23F 511 253
|
qty: 2
link for stabilizer
|
23F 511 253
|
link for stabilizer
|
|
2 |
|
|
|
|
28 |
23B 511 473
|
qty: 2
Grommet
|
23B 511 473
|
Grommet
|
|
2 |
|
|
|
|
29 |
23B 511 309 A
|
qty: 1
stabilizer, complete
|
23B 511 309 A
|
stabilizer, complete
|
rear |
1 |
|
|
|
|
30 |
N10 240 304
|
qty: 4
Hexagon collar nut
|
N10 240 304
|
Hexagon collar nut
|
M14X1, 5 |
4 |
|
|
|
|
31 |
23B 411 346
|
qty: 2
Grommet
|
23B 411 346
|
Grommet
|
|
2 |
|
|
|
|
32 |
23B 411 239
|
qty: 2
clamp
|
23B 411 239
|
clamp
|
|
2 |
|
|
|
|
33 |
23B 511 415 A
|
qty: 2
locking sleeve
|
23B 511 415 A
|
locking sleeve
|
|
2 |
|
|
|
|
34 |
N10 742 901
|
qty: 2
Hex collared bolt
|
N10 742 901
|
Hex collared bolt
|
M14X1, 5X120X90 |
2 |
|
|
|
|
35 |
TJG 511 353
|
qty: 2
Stop
|
TJG 511 353
|
Stop
|
rear |
2 |
|
|
|
|
36 |
2P0 411 175 B
|
qty: 2
distance plate
|
2P0 411 175 B
|
distance plate
|
|
2 |
|
|
|
|
37 |
N90 914 402
|
qty: X
Hexagon bolt
|
N90 914 402
|
Hexagon bolt
|
M8X50 |
X |
|
|
|
|
38 |
N02 300 310
|
qty: X
Hexagon nut
|
N02 300 310
|
Hexagon nut
|
M8 |
X |
|

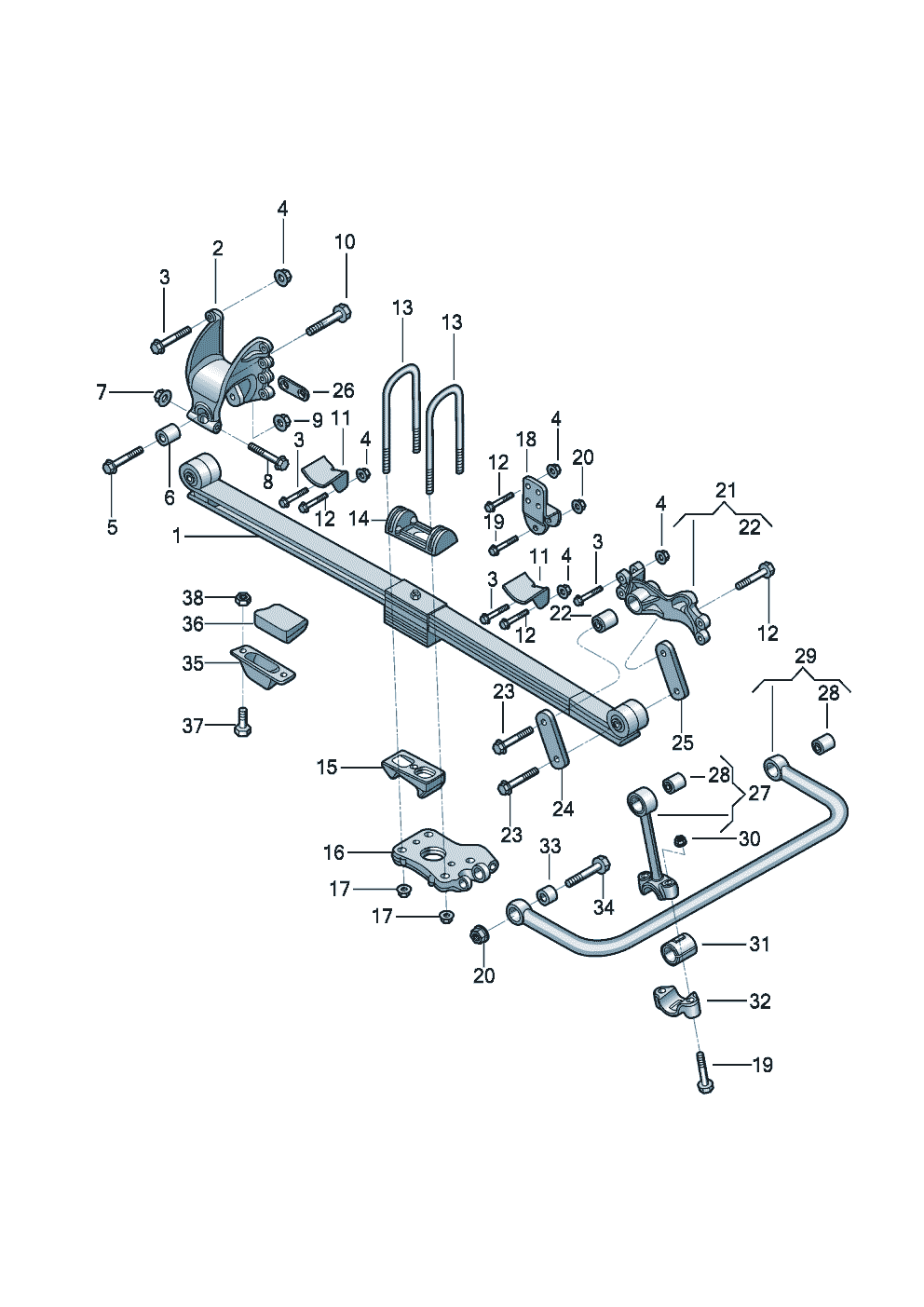

![suspension rear for Micro-Onibus Euro VI(MIO6) 2022 [EUROPE]](https://img.7zap.com/images/oem/vag2410/ML/Bilder_zgd/23F/23F511000.png "suspension rear for Micro-Onibus Euro VI(MIO6) 2022 [EUROPE]")
