Front frame Side member
PR:11A,11C+ 02C,0B7,0B8+
|
|
Front frame Side member
|
|
|
PR:11A,11C+ 02C,0B7,0B8+ |
|
|
|
1 |
2V3 701 021 A
|
qty: 1
Front frame
|
2V3 701 021 A
|
Front frame
|
|
1 |
|
|
|
|
1 |
2V3 701 021 A
|
qty: 1
Front frame
PR:0B8+11A
|
2V3 701 021 A
|
Front frame
|
|
1 |
PR:0B8+11A |
|
|
|
1 |
2V3 701 021 D
|
qty: 1
Front frame
PR:0B7+11C
|
2V3 701 021 D
|
Front frame
|
|
1 |
PR:0B7+11C |
|
|
|
1 |
2V3 701 021 E
|
qty: 1
Front frame
PR:02C+11C
|
2V3 701 021 E
|
Front frame
|
|
1 |
PR:02C+11C |
|
|
|
1 |
2V3 701 021 F
|
qty: 1
Front frame
PR:0B8+11C
|
2V3 701 021 F
|
Front frame
|
|
1 |
PR:0B8+11C |
|
|
|
1 |
2V3 701 021 B
|
qty: 1
Front frame
PR:0B7+0WI+ 11A
|
2V3 701 021 B
|
Front frame
|
|
1 |
PR:0B7+0WI+ 11A |
|
|
|
1 |
2V3 701 021 C
|
qty: 1
Front frame
PR:02C+11A
|
2V3 701 021 C
|
Front frame
|
|
1 |
PR:02C+11A |
|
|
|
2 |
|
Side member w/out cross member No replacement part
|
|
Side member w/out cross member No replacement part
|
|
|
|
|
|
|
3 |
2V3 701 441 A
|
qty: 1
Side member for loading area
PR:0B8
|
2V3 701 441 A
|
Side member for loading area
|
left |
1 |
PR:0B8 |
|
|
|
3 |
2V3 701 442 A
|
qty: 1
Side member for loading area
PR:0B8
|
2V3 701 442 A
|
Side member for loading area
|
right |
1 |
PR:0B8 |
|
|
|
3 |
2V1 701 441
|
qty: 1
Side member for loading area
PR:0B7
|
2V1 701 441
|
Side member for loading area
|
left |
1 |
PR:0B7 |
|
|
|
3 |
2V1 701 442
|
qty: 1
Side member for loading area
PR:0B7
|
2V1 701 442
|
Side member for loading area
|
right |
1 |
PR:0B7 |
|
|
|
3 |
2V1 701 441 A
|
qty: 1
Side member for loading area
PR:02C
|
2V1 701 441 A
|
Side member for loading area
|
left |
1 |
PR:02C |
|
|
|
3 |
2V1 701 442 A
|
qty: 1
Side member for loading area
PR:02C
|
2V1 701 442 A
|
Side member for loading area
|
right |
1 |
PR:02C |
|
|
|
4 |
2V1 701 479 A
|
qty: 1
angle
|
2V1 701 479 A
|
angle
|
left |
1 |
|
|
|
|
4 |
2V1 701 480 A
|
qty: 1
angle
|
2V1 701 480 A
|
angle
|
right |
1 |
|
|
|
|
5 |
2V1 701 095 A
|
qty: 2
Bracket
|
2V1 701 095 A
|
Bracket
|
left a. right |
2 |
|
|
|
|
6 |
2V5 803 877 T
|
qty: X
Hexagon bolt
|
2V5 803 877 T
|
Hexagon bolt
|
M14X1.5X40 |
X |
|
|
|
|
7 |
2V5 803 877 N
|
qty: X
Hexagon bolt
|
2V5 803 877 N
|
Hexagon bolt
|
M14X1, 5X45 |
X |
|
|
|
|
8 |
2V5 803 875 E
|
qty: X
Hexagon nut
|
2V5 803 875 E
|
Hexagon nut
|
M14X1.5 |
X |
|
|
|
|
9 |
2V5 803 878 A A
|
qty: X
Washer
|
2V5 803 878 A A
|
Washer
|
17X40X6 |
X |
|
|
|
|
10 |
2V5 803 877 E S
|
qty: X
Hexagon bolt
|
2V5 803 877 E S
|
Hexagon bolt
|
M16X1, 5X50 |
X |
|
|
|
|
11 |
2V5 803 875 L
|
qty: X
Hexagon nut
|
2V5 803 875 L
|
Hexagon nut
|
M16X1, 5-10 |
X |
|
|
|
|
12 |
|
Cross member see illustration:
|
|
Cross member see illustration:
|
803-015 |
|
|
|
|
|
13 |
|
Cross member see illustration:
|
|
Cross member see illustration:
|
803-020 |
|
|
|
|
|
14 |
|
Cross member see illustration:
|
|
Cross member see illustration:
|
803-016 |
|
|
|
|
|
15 |
|
Cross member see illustration:
|
|
Cross member see illustration:
|
803-021 |
|
|
|
|
|
16 |
2V3 803 543
|
qty: 1
Mounting block
|
2V3 803 543
|
Mounting block
|
left |
1 |
|
|
|
|
16 |
2V3 803 544
|
qty: 1
Mounting block
|
2V3 803 544
|
Mounting block
|
right |
1 |
|
|
|
|
17 |
|
Rivet No replacement part
|
|
Rivet No replacement part
|
|
|
|

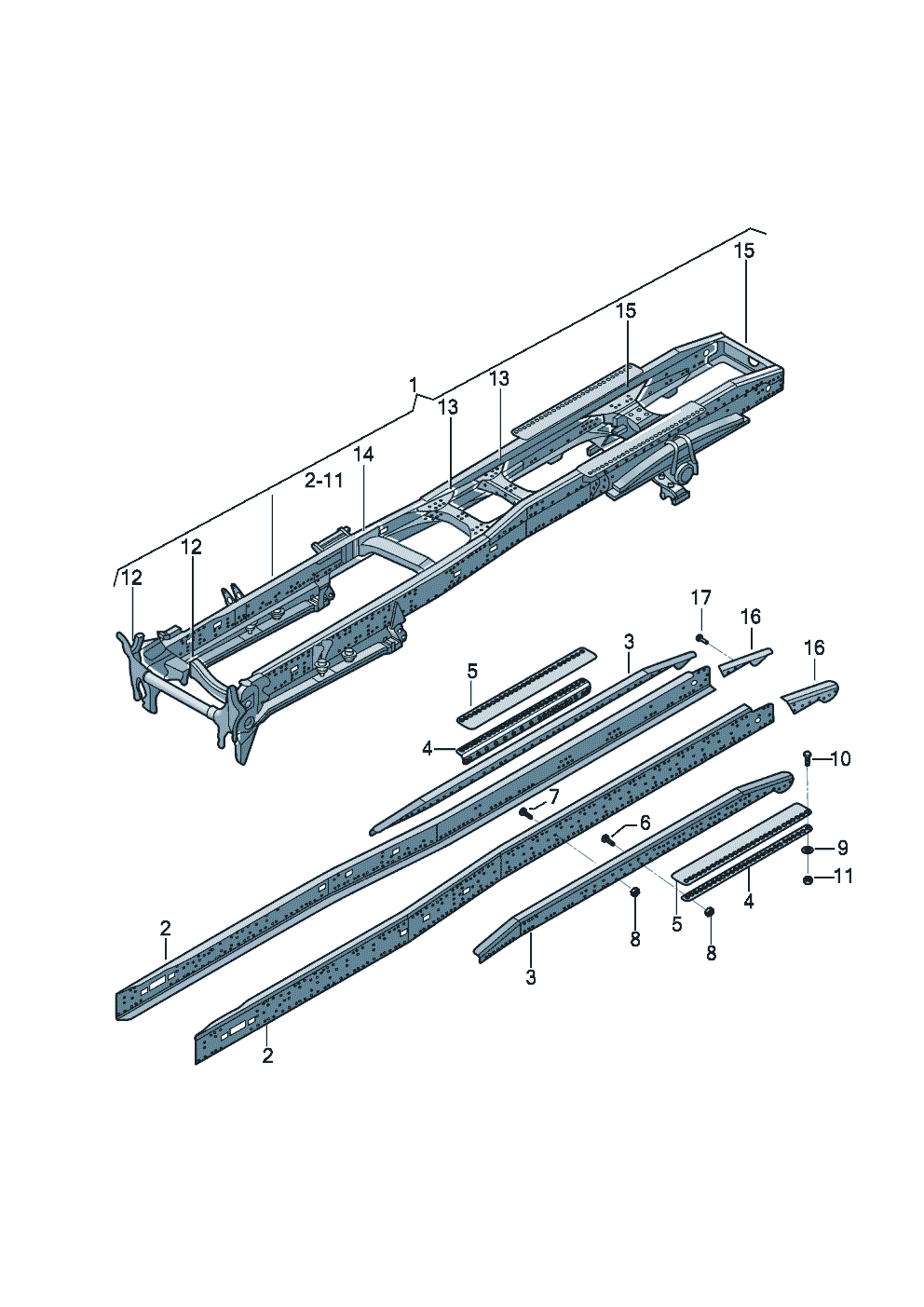

![Front frame Side member for Meteor(MET) 2024 [EUROPE]](https://img.7zap.com/images/oem/vag2410/ML/Bilder_zgd/23M/23M803010.png "Front frame Side member for Meteor(MET) 2024 [EUROPE]")
