A-pillar trim
|
|
A-pillar trim
|
|
|
|
|
|
|
1 |
2V3 809 023
|
qty: 1
trim for a-pillar Paint primer
PR:3R0
|
2V3 809 023
|
trim for a-pillar Paint primer
|
left |
1 |
PR:3R0 |
|
|
|
1 |
2V3 809 055 B
|
qty: 1
trim for a-pillar Paint primer
PR:3R0
|
2V3 809 055 B
|
trim for a-pillar Paint primer
|
left |
1 |
PR:3R0 |
|
|
|
1 |
2V3 809 024
|
qty: 1
trim for a-pillar Paint primer
PR:3R0
|
2V3 809 024
|
trim for a-pillar Paint primer
|
right |
1 |
PR:3R0 |
|
|
|
1 |
2V3 809 056 B
|
qty: 1
trim for a-pillar Paint primer
PR:3R0
|
2V3 809 056 B
|
trim for a-pillar Paint primer
|
right |
1 |
PR:3R0 |
|
|
|
1 |
2V3 809 055
|
qty: 1
trim for a-pillar Paint primer
PR:3R8
|
2V3 809 055
|
trim for a-pillar Paint primer
|
left |
1 |
PR:3R8 |
|
|
|
1 |
2V3 809 055 A
|
qty: 1
trim for a-pillar Paint primer
PR:3R8
|
2V3 809 055 A
|
trim for a-pillar Paint primer
|
left |
1 |
PR:3R8 |
|
|
|
1 |
2V3 809 056
|
qty: 1
trim for a-pillar Paint primer
PR:3R8
|
2V3 809 056
|
trim for a-pillar Paint primer
|
right |
1 |
PR:3R8 |
|
|
|
1 |
2V3 809 056 A
|
qty: 1
trim for a-pillar Paint primer
PR:3R8
|
2V3 809 056 A
|
trim for a-pillar Paint primer
|
right |
1 |
PR:3R8 |
|
|
|
2 |
2V3 863 294
|
qty: 1
Cover for A-pillar
|
2V3 863 294
|
Cover for A-pillar
|
left |
1 |
|
|
|
|
2 |
2V3 863 294 A
|
qty: 1
Cover for A-pillar
|
2V3 863 294 A
|
Cover for A-pillar
|
right |
1 |
|
|
|
|
3 |
2V5 803 377
|
qty: X
Hexagon nut
|
2V5 803 377
|
Hexagon nut
|
50X3, 5X8-POM-B L |
X |
|
|
|
|
4 |
WHT 005 845
|
qty: X
fillister hd. bolt
|
WHT 005 845
|
fillister hd. bolt
|
5X20 - Z14X1, 5 |
X |
|
|
|
|
5 |
2V3 854 533
|
qty: 1
Cover Paint primer
|
2V3 854 533
|
Cover Paint primer
|
left lower |
1 |
|
|
|
|
5 |
2V3 854 533 A
|
qty: 1
Cover Paint primer
|
2V3 854 533 A
|
Cover Paint primer
|
left lower |
1 |
|
|
|
|
5 |
2V3 854 534
|
qty: 1
Cover Paint primer
|
2V3 854 534
|
Cover Paint primer
|
right lower |
1 |
|
|
|
|
5 |
2V3 854 534 A
|
qty: 1
Cover Paint primer
|
2V3 854 534 A
|
Cover Paint primer
|
right lower |
1 |
|
|
|
|
6 |
2V5 864 901 A
|
qty: 1
Shaped part (foam)
|
2V5 864 901 A
|
Shaped part (foam)
|
left |
1 |
|
|
|
|
6 |
2V5 864 902 A
|
qty: 1
Shaped part (foam)
|
2V5 864 902 A
|
Shaped part (foam)
|
right |
1 |
|
|
|
|
7 |
2V5 809 056
|
qty: 1
trim for a-pillar
|
2V5 809 056
|
trim for a-pillar
|
left lower |
1 |
|
|
|
|
7 |
2V5 809 056 A
|
qty: 1
trim for a-pillar
|
2V5 809 056 A
|
trim for a-pillar
|
right lower |
1 |
|
|
|
|
8 |
2V5 809 231 A
|
qty: 1
Water deflector
|
2V5 809 231 A
|
Water deflector
|
left |
1 |
|
|
|
|
8 |
2V5 809 232
|
qty: 1
Water deflector
|
2V5 809 232
|
Water deflector
|
right |
1 |
|
|
|
|
9 |
2V5 803 875 A T
|
qty: X
insert nut
|
2V5 803 875 A T
|
insert nut
|
|
X |
|
|
|
|
10 |
2V5 809 940
|
qty: 4
seal ring
|
2V5 809 940
|
seal ring
|
Self-adhesive
5, 8X16X2-EPDM 80-SK |
4 |
|
|
|
|
11 |
2V3 857 085
|
qty: 1
Cover cap
|
2V3 857 085
|
Cover cap
|
left |
1 |
|
|
|
|
11 |
2V3 857 086
|
qty: 1
Cover cap
|
2V3 857 086
|
Cover cap
|
right |
1 |
|
|
|
|
12 |
2V5 864 137
|
qty: 2
Cover cap
|
2V5 864 137
|
Cover cap
|
|
2 |
|
|
|
|
13 |
2V5 867 276 A
|
qty: 2
Clamp
|
2V5 867 276 A
|
Clamp
|
|
2 |
|
|
|
|
14 |
2V1 853 899
|
qty: 1
Trim Entry strip protective foil
|
2V1 853 899
|
Trim Entry strip protective foil
|
left rear |
1 |
|
|
|
|
14 |
2V1 853 900
|
qty: 1
Trim Entry strip protective foil
|
2V1 853 900
|
Trim Entry strip protective foil
|
right rear |
1 |
|
|
|
|
15 |
2V1 853 903
|
qty: 1
Trim Entry strip protective foil
|
2V1 853 903
|
Trim Entry strip protective foil
|
left front |
1 |
|
|
|
|
15 |
2V1 853 904
|
qty: 1
Trim Entry strip protective foil
|
2V1 853 904
|
Trim Entry strip protective foil
|
right front |
1 |
|
|
|
|
16 |
2V5 857 995
|
qty: 1
Cover Drop-side
|
2V5 857 995
|
Cover Drop-side
|
left lower |
1 |
|
|
|
|
16 |
2V5 857 996
|
qty: 1
Cover Drop-side
|
2V5 857 996
|
Cover Drop-side
|
right lower |
1 |
|
|
|
|
17 |
2V5 807 279 B
|
qty: X
fillister hd. bolt
|
2V5 807 279 B
|
fillister hd. bolt
|
ST4, 8X50C-MAN1 83-B4 |
X |
|
|
|
|
18 |
2V5 807 889 B
|
qty: X
Cage nut
|
2V5 807 889 B
|
Cage nut
|
|
X |
|
|
|
|
19 |
WHT 006 804
|
qty: 2
Countersunk oval bolt with hexagon socket head
|
WHT 006 804
|
Countersunk oval bolt with hexagon socket head
|
|
2 |
|
|
|
|
20 |
2V5 857 173
|
qty: 1
Damping rubber
|
2V5 857 173
|
Damping rubber
|
left |
1 |
|
|
|
|
20 |
2V5 857 174
|
qty: 1
Damping rubber
|
2V5 857 174
|
Damping rubber
|
right |
1 |
|

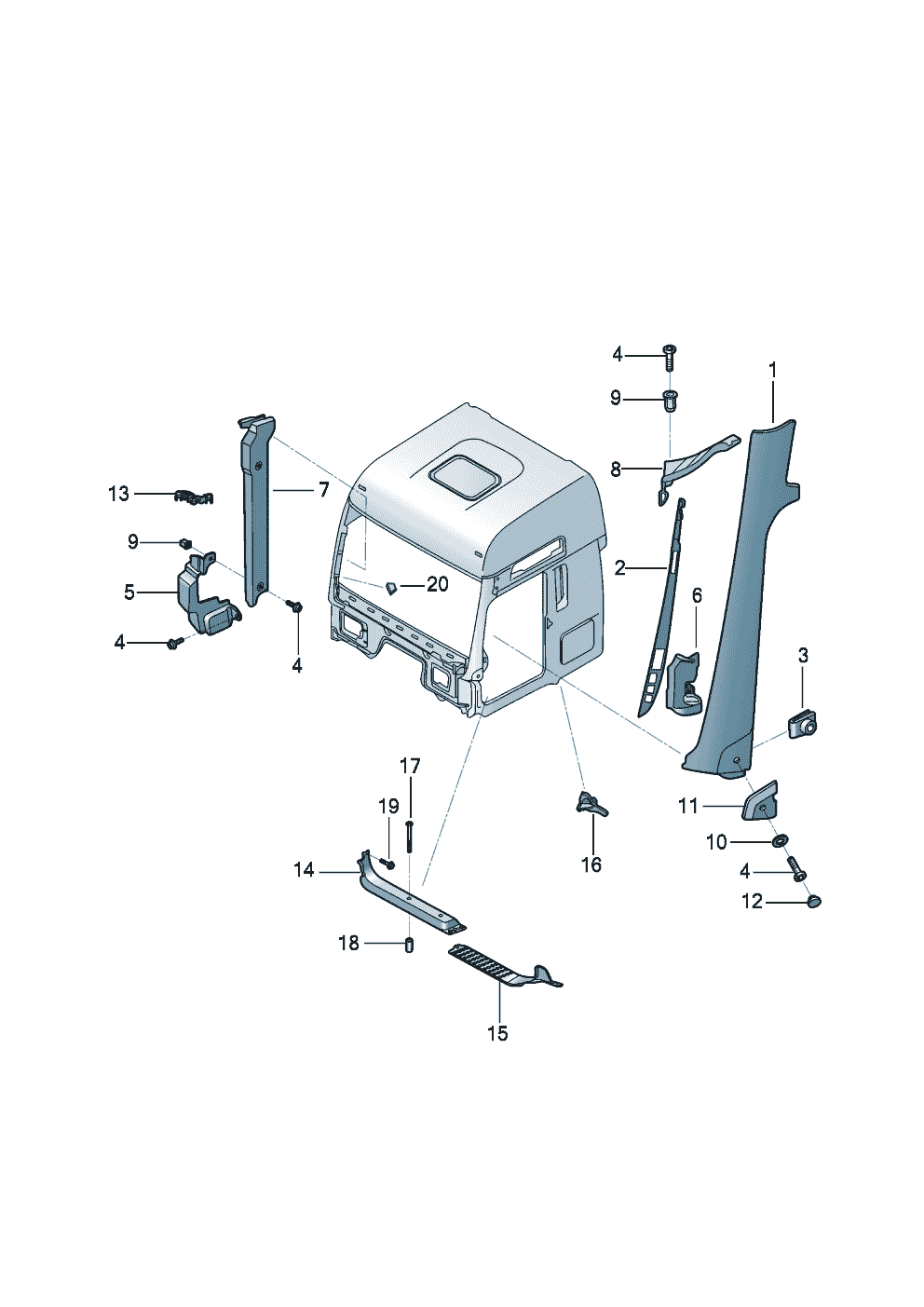

![A-pillar trim for Meteor(MET) 2024 [EUROPE]](https://img.7zap.com/images/oem/vag2410/ML/Bilder_zgd/23M/23M867040.png "A-pillar trim for Meteor(MET) 2024 [EUROPE]")
