Brand: Volkswagen-commercial
Serie: Meteor Euro VI
Model: Meteor Euro VI
Model Year: 2023

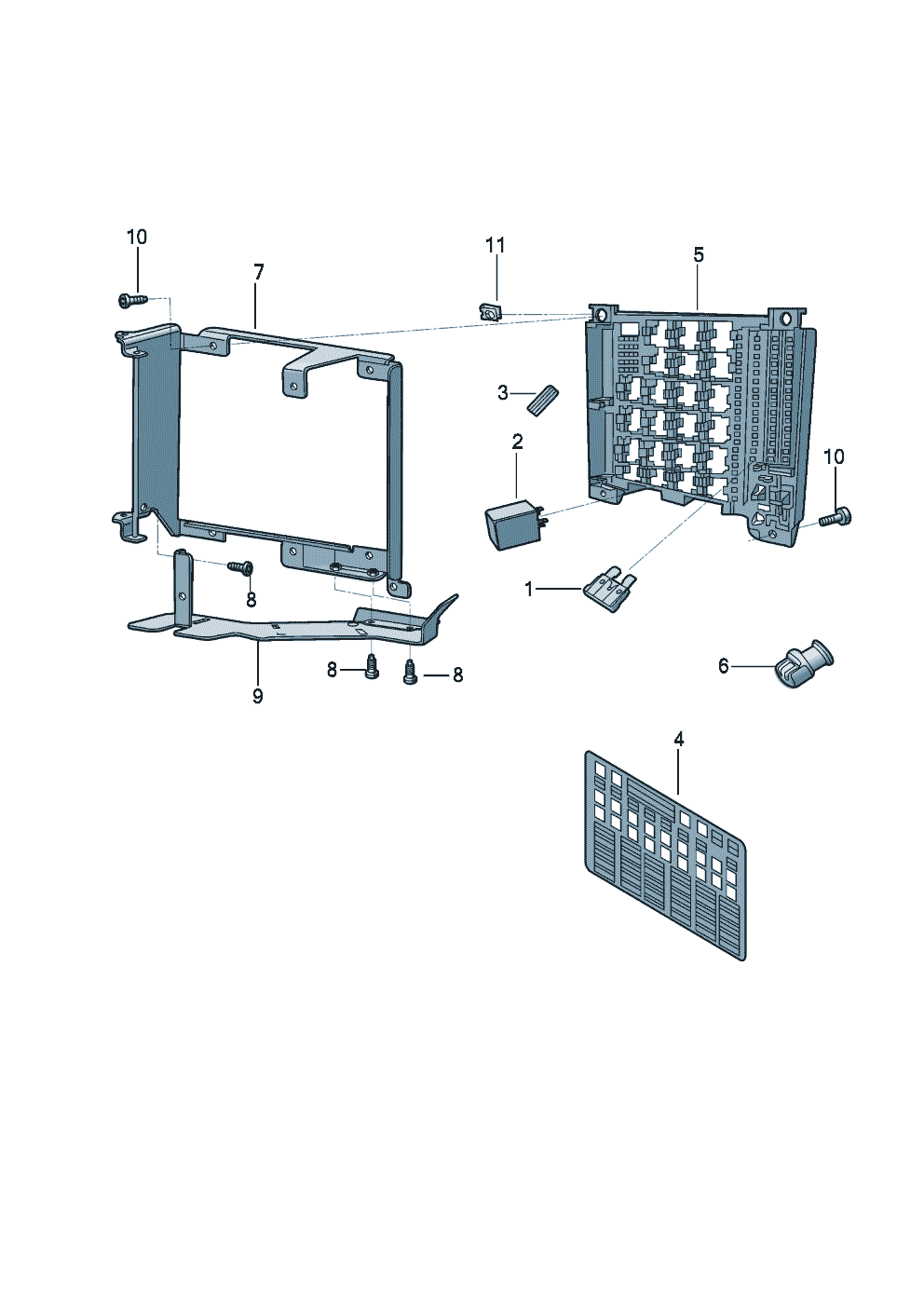

fuse Relay Wiring set for dash panel for Meteor Euro VI(MET6) 2023 [EUROPE]

fuse Relay Wiring set for dash panel for Meteor Euro VI(MET6) 2023 [EUROPE]
№ part number information description remark unit model
fuse Relay Wiring set for dash panel
fuse Relay Wiring set for dash panel
1 N10 261 514  qty: X
flat fuse 10/2x2, 8
N10 261 514  flat fuse 10/2x2, 8 5A -lt brown- X
1 N10 261 515  qty: X
flat fuse 10/2x2, 8
N10 261 515  flat fuse 10/2x2, 8 7.5A -brown- X
1 N10 261 516  qty: X
flat fuse 10/2x2, 8
N10 261 516  flat fuse 10/2x2, 8 10A -red- X
1 N10 261 517  qty: X
flat fuse 10/2x2, 8
N10 261 517  flat fuse 10/2x2, 8 15A -lt blue- X
1 N10 261 518  qty: X
flat fuse 10/2x2, 8
N10 261 518  flat fuse 10/2x2, 8 20A -yellow- X
1 2P0 937 629 B  qty: X
fuse
2P0 937 629 B  fuse 25A -cl.glass- X
2 2P0 941 589 A  qty: X
Relay
2P0 941 589 A  Relay X
2 2R2 955 529  qty: X
Relay
2R2 955 529  Relay X
2 2R2 955 529 B  qty: X
Relay
2R2 955 529 B  Relay X
3 23B 937 629 E  qty: 1
Puller fuse
23B 937 629 E  Puller fuse 1
4 2V3 010 039 D  qty: 1
sticker for relay and fuse lay-out
2V3 010 039 D  sticker for relay and fuse lay-out 1
5 23H 937 025  qty: 1
Fuse socket Wiring set for dash panel
23H 937 025  Fuse socket Wiring set for dash panel 1
6 2Z0 905 051  qty: 1
series resistor
2Z0 905 051  series resistor brown 1
7 2V5 937 565 E  qty: 1
bracket - relay plate/fuse box
2V5 937 565 E  bracket - relay plate/fuse box 1
8 N10 632 003  qty: 3
Oval socket head bolt with hex drive
N10 632 003  Oval socket head bolt with hex drive M6X16 3
9 2V5 971 502  qty: 1
holder for wiring harness
2V5 971 502  holder for wiring harness 1
10 N10 632 102  qty: 4
Oval hexagon socket head bolt
N10 632 102  Oval hexagon socket head bolt M6X25 4
11 WHT 005 137  qty: 2
Cage nut
WHT 005 137  Cage nut M6X23X15 2
