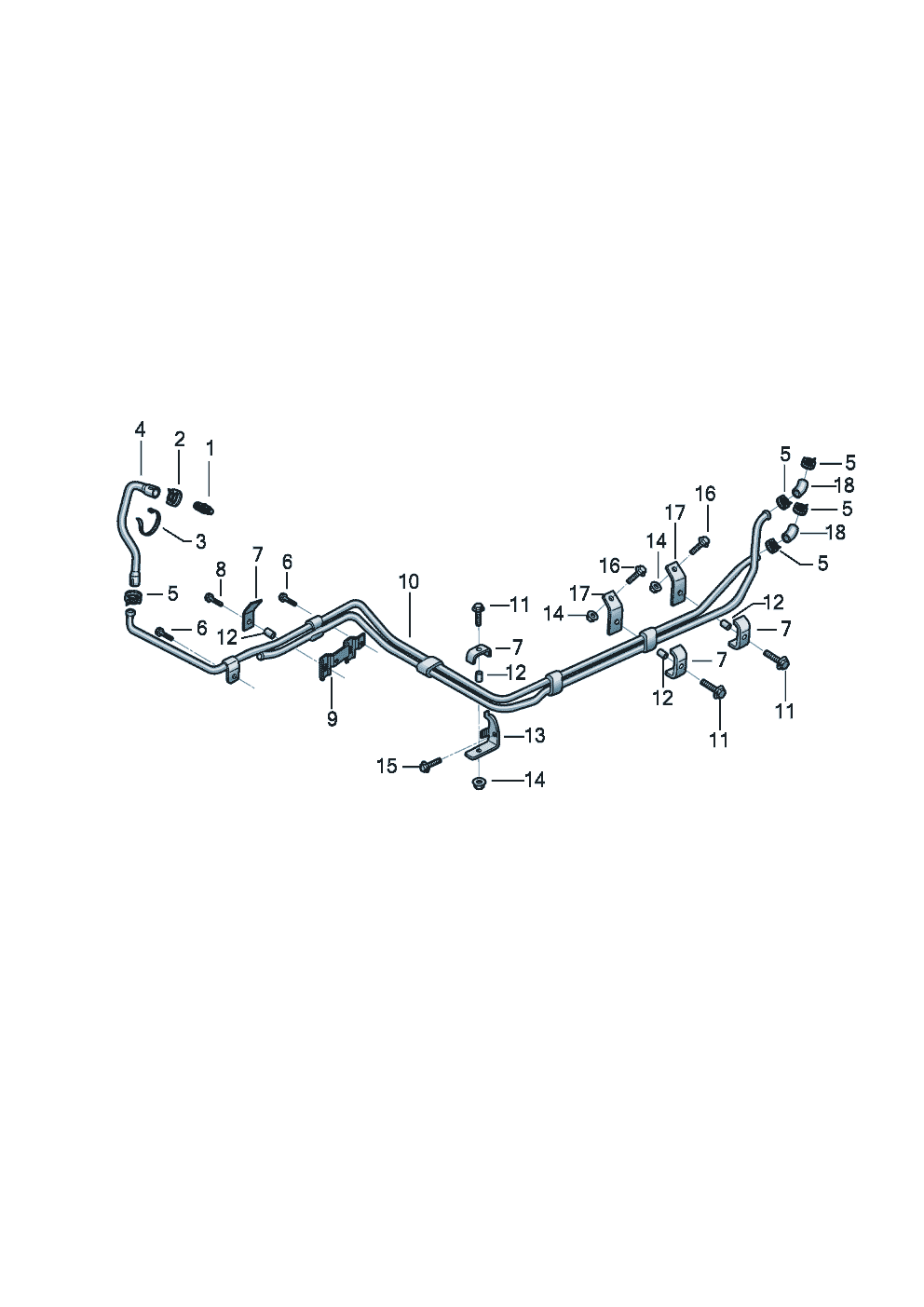

Coolant pipe with coolant hose for Constellation Euro VI(CON6) 2025 [EUROPE]

№	part number	information		description	remark	unit	model
		Coolant pipe with coolant hose PR:G2G		Coolant pipe with coolant hose			PR:G2G
1	2Z0 121 179	qty: 1 Coupling element	2Z0 121 179	Coupling element		1
2	2V5 121 549 A	qty: 1 hose clip	2V5 121 549 A	hose clip	H20-32	1
3	2T2 121 477 A	qty: 1 Corrugated tube clip	2T2 121 477 A	Corrugated tube clip		1
4	2T2 103 683	qty: 1 Hose	2T2 103 683	Hose		1
5	2V5 121 549 C	qty: 5 hose clip	2V5 121 549 C	hose clip	H16-27	5
6	2R2 803 877 A H	qty: 3 bolt, hex. hd. with shoulder, self-locking	2R2 803 877 A H	bolt, hex. hd. with shoulder, self-locking	M8X25	3
7	WHT 006 384	qty: 5 Clamp	WHT 006 384	Clamp		5
8	N10 306 501	qty: 2 Hexagon bolt	N10 306 501	Hexagon bolt	M8X35	2
9	2U2 399 243	qty: 1 Support element	2U2 399 243	Support element		1
10	23L 317 752 B	qty: 1 Water pipe	23L 317 752 B	Water pipe		1
11	N10 306 501	qty: 3 Hexagon bolt	N10 306 501	Hexagon bolt	M8X35	3
12	23K 317 039	qty: 5 Distance piece	23K 317 039	Distance piece		5
13	2U2 399 243 A	qty: 1 Support element	2U2 399 243 A	Support element		1
14	N01 508 39	qty: 3 Hexagon collar nut	N01 508 39	Hexagon collar nut	M8	3
15	N90 548 305	qty: 1 Hex collared bolt	N90 548 305	Hex collared bolt	M8X20	1
16	N01 953 15	qty: 2 Hex collared bolt	N01 953 15	Hex collared bolt	M8X40	2
17	23K 399 243 F	qty: 2 Support element	23K 399 243 F	Support element		2
18	2U2 317 065 A	qty: 2 Refrigerant hose	2U2 317 065 A	Refrigerant hose		2
