Brand: Volkswagen-commercial
Serie: Constellation Euro VI
Model: Constellation Euro VI
Engine: -
Model Year: 2025
Date of manufacture: -
Transmission: -

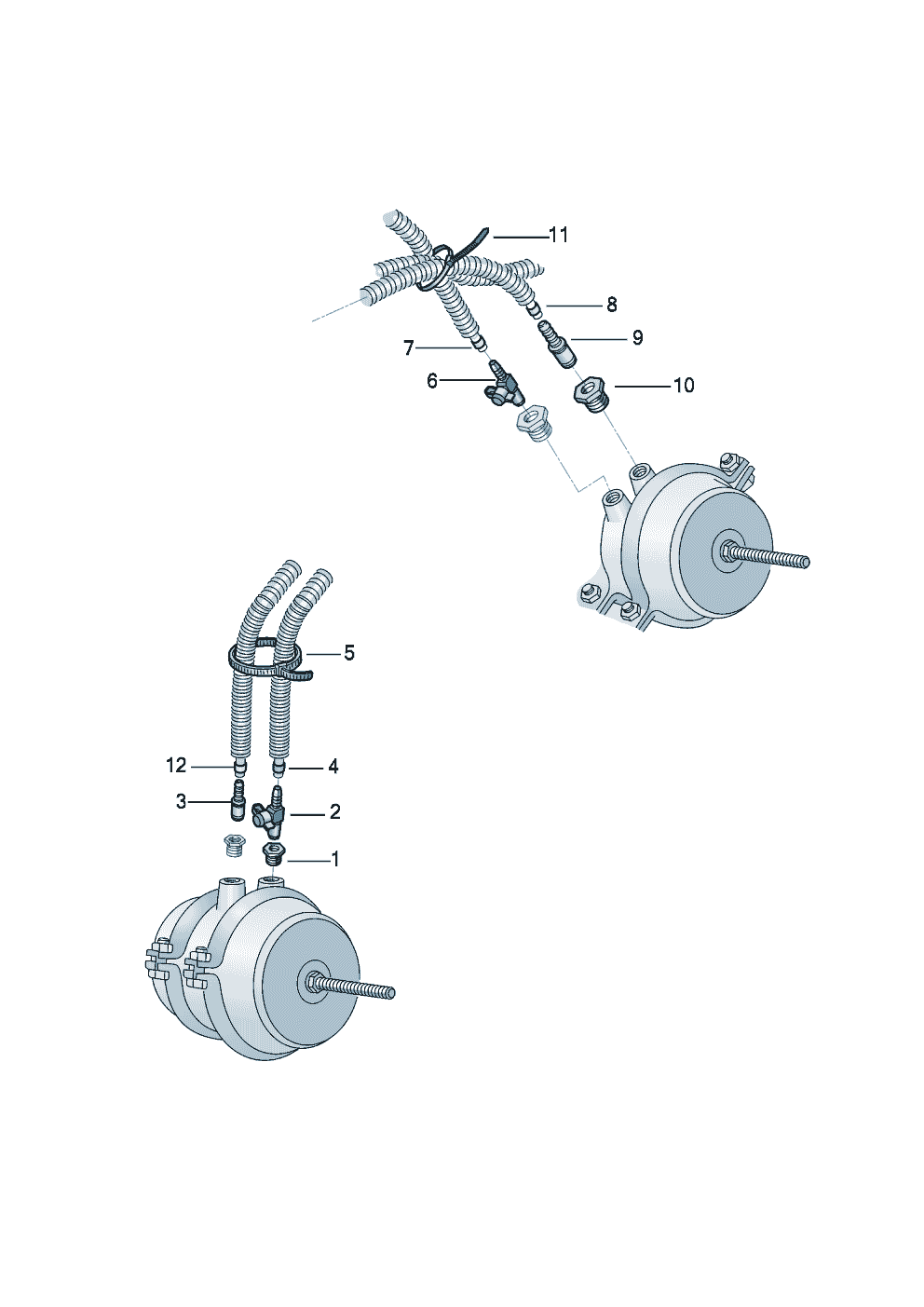

Diaphragm cylinder Coupling element rear for Constellation Euro VI(CON6) 2025 [EUROPE]

Diaphragm cylinder Coupling element rear for Constellation Euro VI(CON6) 2025 [EUROPE]
№ part number information description remark unit model
Diaphragm cylinder Coupling element
PR:01I
 Diaphragm cylinder Coupling element rear PR:01I
1 2S2 607 263 A  qty: 2
Adapter
2S2 607 263 A  Adapter UBL NG12 2
2 2S2 607 315 R  qty: 1
Connecting piece
2S2 607 315 R  Connecting piece NG12-T12 1
3 2S2 607 313  qty: 1
Connecting piece
2S2 607 313  Connecting piece NG12 1
4 Pipe heat shield see illustration:
Pipe heat shield see illustration: 699-000
5 N02 090 57  qty: 1
Cable ties
N02 090 57  Cable ties 6, 5X390 1
6 2S2 607 315 R  qty: 1
Connecting piece
2S2 607 315 R  Connecting piece NG12-T12 1
7 Pipe heat shield see illustration:
Pipe heat shield see illustration: 699-000
8 Pipe heat shield see illustration:
Pipe heat shield see illustration: 699-000
9 2S2 607 313  qty: 1
Connecting piece
2S2 607 313  Connecting piece NG12 1
10 2S2 607 263 A  qty: 2
Adapter
2S2 607 263 A  Adapter UBL NG12 2
11 N02 090 57  qty: 1
Cable ties
N02 090 57  Cable ties 6, 5X390 1
12 Pipe heat shield see illustration:
Pipe heat shield see illustration: 699-000
