Brand: Volkswagen-commercial
Serie: Constellation Euro VI
Model: Constellation Euro VI
Engine: -
Model Year: 2024
Date of manufacture: -
Transmission: -

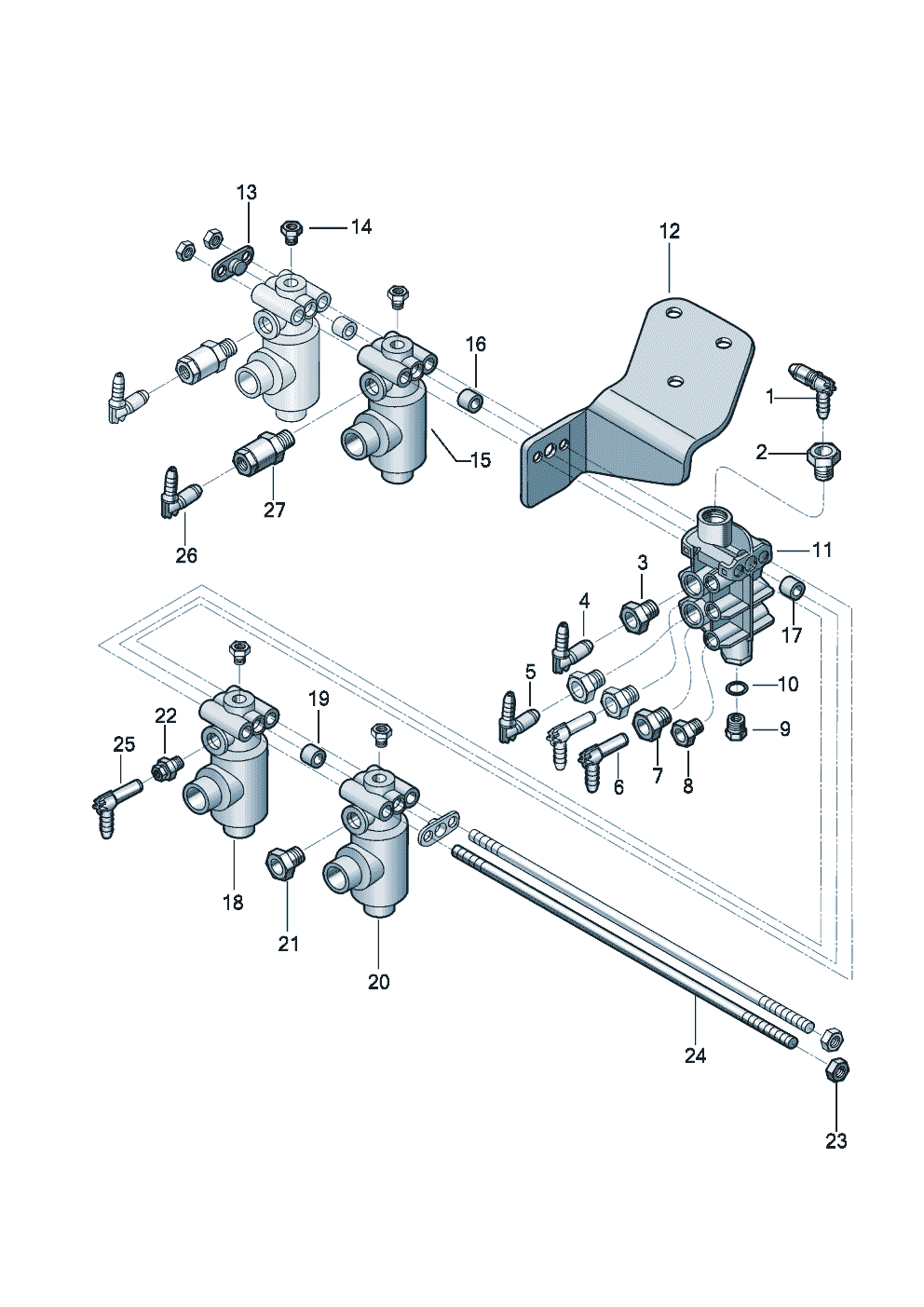

4-way valve Valve lift solenoid clamping strip for battery for Constellation Euro VI(CON6) 2024 [EUROPE]

4-way valve Valve lift solenoid clamping strip for battery for Constellation Euro VI(CON6) 2024 [EUROPE]
№ part number information description remark unit model
4-way valve Valve lift solenoid clamping strip for battery
PR:1X5
 4-way valve Valve lift solenoid clamping strip for battery PR:1X5
1 2S2 607 079 A  qty: 1
Coupling element
2S2 607 079 A  Coupling element NG12-T12 1
2 2S2 607 263 A  qty: 1
Adapter
2S2 607 263 A  Adapter UBL NG12 M22X1, 5 1
3 2V3 607 263  qty: 2
Adapter
2V3 607 263  Adapter NG9 2
4 23K 607 079  qty: 1
Coupling element
23K 607 079  Coupling element NG9 1
5 2V3 607 079  qty: 1
Knee piece
2V3 607 079  Knee piece NG9 1
6 2V3 607 085 E  qty: 2
Wiring connector
PR:FH2
 2V3 607 085 E  Wiring connector 2 PR:FH2
7 2V3 607 085 D  qty: 2
connection piece
PR:FH2
 2V3 607 085 D  connection piece 2 PR:FH2
8 2V5 607 815 F  qty: 1
Cover cap for bolt
PR:FH2
 2V5 607 815 F  Cover cap for bolt M10X1X12-CUZN- SW12 1 PR:FH2
8 2V5 607 815 F  qty: 3
Cover cap for bolt
PR:FH1
 2V5 607 815 F  Cover cap for bolt M10X1X12-CUZN- SW12 3 PR:FH1
9 2RP 607 383  qty: 1
Connection piece
2RP 607 383  Connection piece M16X1, 5 1
10 2V3 612 109  qty: 1
seal ring
2V3 612 109  seal ring 14X2 1
11 2V3 607 359 C  qty: 1
4-way valve
2V3 607 359 C  4-way valve 1
12 2V5 607 325  qty: 1
retainer for flap
2V5 607 325  retainer for flap 1
13 2V5 611 335  qty: 2
Sealing element
2V5 611 335  Sealing element 2
14 2V1 609 649  qty: 3
Bungs
2V1 609 649  Bungs 3
15 2V1 907 631  qty: 2
Valve lift solenoid
2V1 907 631  Valve lift solenoid 2
16 2V5 607 463  qty: 1
Pipe
2V5 607 463  Pipe 1
17 2V5 607 463 A  qty: 2
Pipe
2V5 607 463 A  Pipe 2
18 2V3 907 631  qty: 1
Valve lift solenoid
2V3 907 631  Valve lift solenoid 1
19 2V5 607 463 A  qty: 1
Pipe
PR:0R1
 2V5 607 463 A  Pipe 1 PR:0R1
20 2V1 907 631  qty: 1
Valve lift solenoid
PR:0R1
 2V1 907 631  Valve lift solenoid 1 PR:0R1
21 2V1 609 649  qty: 2
Bungs
PR:0R1
 2V1 609 649  Bungs 2 PR:0R1
22 2V3 607 815 D  qty: 1
Coupling element
2V3 607 815 D  Coupling element NG12X16 1
23 2V5 071 335  qty: 4
Hexagon nut
2V5 071 335  Hexagon nut M8-8-MAN183 4
24 WHT 006 855  qty: 2
Brace
PR:0R1
 WHT 006 855  Brace 2 PR:0R1
24 WHT 006 818  qty: 2
Brace
PR:0R0
 WHT 006 818  Brace 2 PR:0R0
25 2V3 607 085 E  qty: 1
Wiring connector
2V3 607 085 E  Wiring connector 1
26 2V3 607 079  qty: 2
Knee piece
2V3 607 079  Knee piece NG9 2
27 2V3 607 815  qty: 2
Adapter
2V3 607 815  Adapter NG9 2
