Brand: Volkswagen-commercial
Serie: Constellation Euro VI
Model: Constellation Euro VI
Engine: -
Model Year: 2024
Date of manufacture: -
Transmission: -

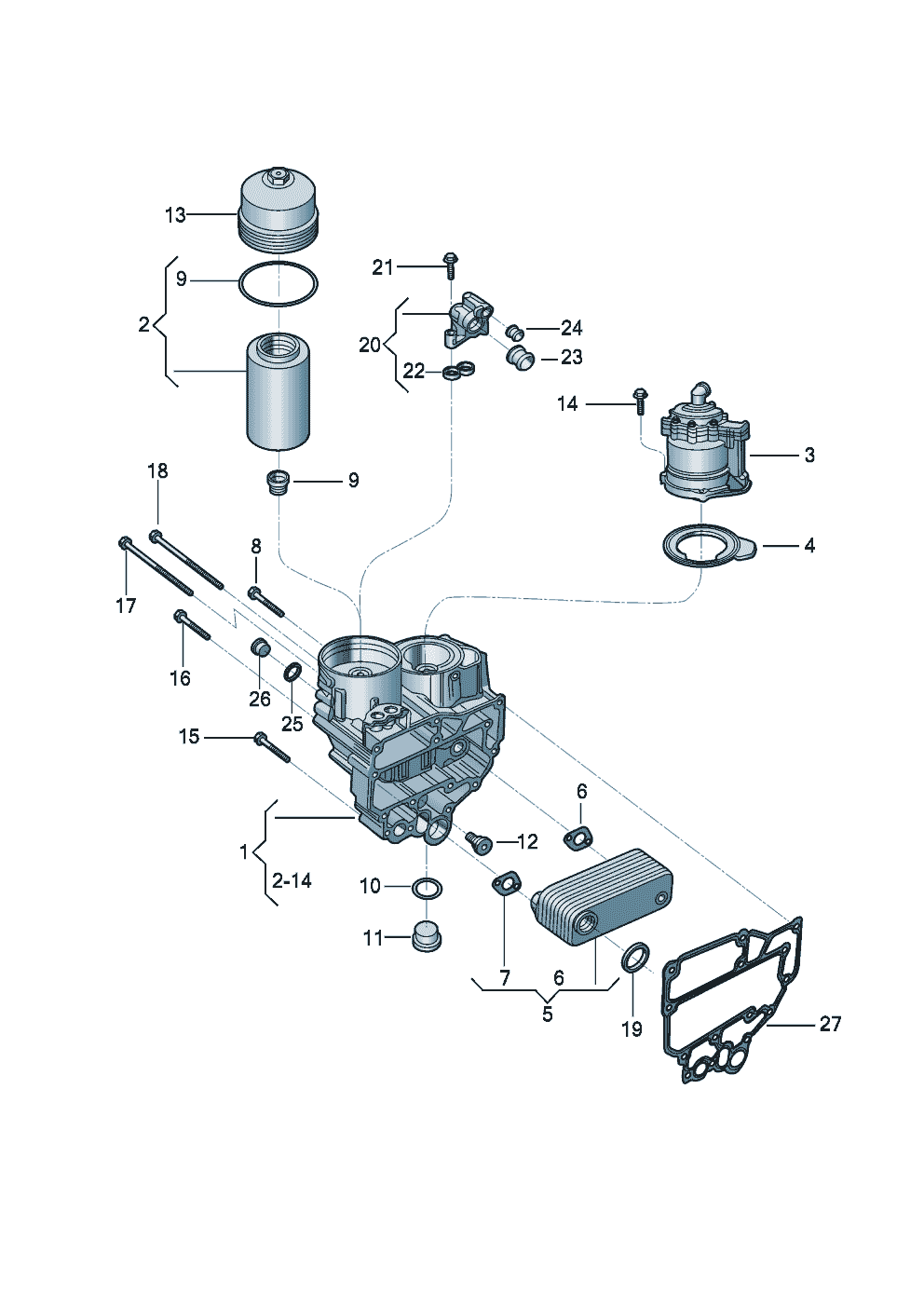

Oil cooler oil filter for Constellation Euro VI(CON6) 2024 [EUROPE]

Oil cooler oil filter for Constellation Euro VI(CON6) 2024 [EUROPE]
№ part number information description remark unit model
Oil cooler oil filter
Oil cooler oil filter
1 2V3 117 013 A  qty: 1
oil filter
2V3 117 013 A  oil filter 1
2 07W 115 561 D  qty: 1
filter element
07W 115 561 D  filter element 1
2 07W 115 561 E  qty: 1
filter element
07W 115 561 E  filter element 1
3 07W 103 523 G  qty: 1
oil separator
07W 103 523 G  oil separator 1
4 07W 115 315 A  qty: 1
Sealing element
07W 115 315 A  Sealing element 1
5 07W 115 451  qty: 1
Oil cooler
07W 115 451  Oil cooler 1
6 07W 115 111 A  qty: 1
Sealing element
07W 115 111 A  Sealing element 1
7 07W 115 111 B  qty: 1
Sealing element
07W 115 111 B  Sealing element 1
8 WHT 006 680  qty: 4
Hexagon flange screw
WHT 006 680  Hexagon flange screw M8X80 8.8 4
9 07W 115 315  qty: 1
seal ring
07W 115 315  seal ring 126X4 1
9 07W 115 315 B  qty: 1
seal ring
07W 115 315 B  seal ring 126X4 1
10 WHT 011 754  qty: 1
seal ring
WHT 011 754  seal ring A45X52 1
11 WHT 011 755  qty: 1
sealing plug
WHT 011 755  sealing plug M45X1, 5X14 1
12 07W 115 409  qty: 1
Safety valve
07W 115 409  Safety valve 1
13 07W 115 311  qty: 1
Cover for oil filter
07W 115 311  Cover for oil filter 1
14 WHT 007 448  qty: 3
Hexagon bolt
WHT 007 448  Hexagon bolt M6X30 8.8 3
15 WHT 006 683  qty: 8
Hexagon flange screw
WHT 006 683  Hexagon flange screw M10X80 10.9 8
16 07W 019 873 A C  qty: 3
Hexagon bolt
07W 019 873 A C  Hexagon bolt M10X110-10, 9 3
17 WHT 009 675  qty: 1
Socket head bolt
WHT 009 675  Socket head bolt M10X160 10.9 1
18 WHT 009 674  qty: 2
Socket head bolt
WHT 009 674  Socket head bolt M10X180 10.9 2
19 2V3 127 182  qty: 1
seal ring
2V3 127 182  seal ring 34.2X3.8X5.5 1
20 2V3 115 255 C  qty: 1
flange oil pipe
2V3 115 255 C  flange oil pipe 1
21 07W 019 873 A M  qty: 2
Hexagon bolt
07W 019 873 A M  Hexagon bolt M8X45-10.9 2
22 2V3 115 685 A  qty: 1
seal ring
2V3 115 685 A  seal ring 1
22 2V3 115 685 C  qty: 1
seal ring
2V3 115 685 C  seal ring 1
23 2V5 115 467 A  qty: 1
Oil suction pipe
2V5 115 467 A  Oil suction pipe 1
24 2V5 115 467 B  qty: 1
Oil suction pipe
2V5 115 467 B  Oil suction pipe 1
25 WHT 007 791 F  qty: 2
seal ring
WHT 007 791 F  seal ring 18.3X26 2
26 WHT 008 706  qty: 2
sealing plug
WHT 008 706  sealing plug M18X1, 5 2
27 2V3 115 685  qty: 1
gasket for oil cooler
2V3 115 685  gasket for oil cooler 1
