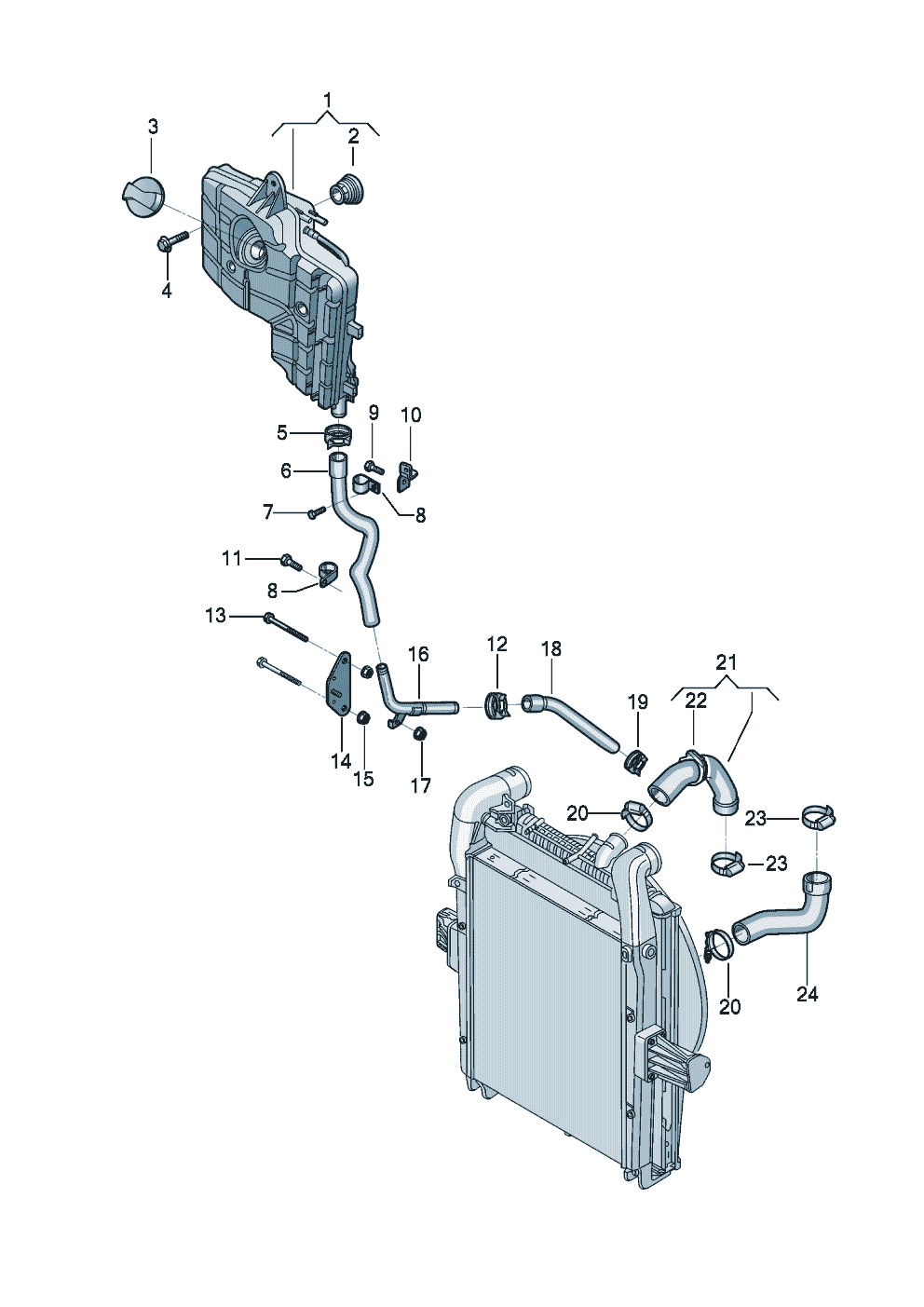

Coolant cooling system expansion chamber for Constellation Euro VI(CON6) 2024 [EUROPE]

№	part number	information		description	remark	unit
		Coolant cooling system expansion chamber		Coolant cooling system expansion chamber
1	2U2 121 405	qty: 1 expansion chamber	2U2 121 405	expansion chamber		1
2	2R2 121 168	qty: 1 Controller lid	2R2 121 168	Controller lid	0, 9 BAR	1
3	1J0 121 321 B	qty: 1 End cap	1J0 121 321 B	End cap	1, 4 BAR	1
4	N01 953 07	qty: 3 Hex collared bolt	N01 953 07	Hex collared bolt	M8X25	3
5	2RE 121 255 F	qty: 1 Clamp	2RE 121 255 F	Clamp		1
6	23K 121 103 D	qty: 1 Coolant hose	23K 121 103 D	Coolant hose		1
6	23K 121 103 E	qty: 1 Coolant hose	23K 121 103 E	Coolant hose		1
7	N10 403 203	qty: 1 Hexagon bolt	N10 403 203	Hexagon bolt	M8X16 8.8	1
8	23K 121 136	qty: 2 Clamp	23K 121 136	Clamp		2
8	23K 121 136 A	qty: 2 Clamp	23K 121 136 A	Clamp		2
9		Hexagon bolt see illustration, item:		Hexagon bolt see illustration, item:	M10X25 899-015, 10
10	23K 121 233	qty: 1 Bracket	23K 121 233	Bracket		1
11	N10 530 203	qty: 1 Hexagon bolt	N10 530 203	Hexagon bolt	M8X12	1
12	2RE 121 255 E	qty: 2 Clamp	2RE 121 255 E	Clamp		2
13	2V5 803 877 R	qty: 2 Hexagon bolt	2V5 803 877 R	Hexagon bolt	M14X1, 5X125	2
14	23K 121 384	qty: 1 pipe holder	23K 121 384	pipe holder		1
15	2V5 803 875 E	qty: 2 Hexagon nut	2V5 803 875 E	Hexagon nut	M14X1.5	2
16	23K 121 481	qty: 1 Coolant pipe	23K 121 481	Coolant pipe		1
17	N01 508 39	qty: 1 Hexagon collar nut see drawing:	N01 508 39	Hexagon collar nut see drawing:	M8 N 015 083 9	1
18	23K 121 103	qty: 1 Coolant hose	23K 121 103	Coolant hose		1
19	2S0 145 687	qty: 1 Clip	2S0 145 687	Clip		1
20	WHT 009 459	qty: 2 hose clip	WHT 009 459	hose clip	50-70	2
21	23K 121 101 A	qty: 1 Coolant hose	23K 121 101 A	Coolant hose		1
22	23H 121 477 A	qty: 1 Clamp	23H 121 477 A	Clamp		1
23	2V5 121 549 E	qty: 2 hose clip	2V5 121 549 E	hose clip	H60-74	2
24	23K 121 102 A	qty: 1 Refrigerant hose	23K 121 102 A	Refrigerant hose	lower	1
24	23K 121 102 H	qty: 1 Refrigerant hose	23K 121 102 H	Refrigerant hose	lower	1
