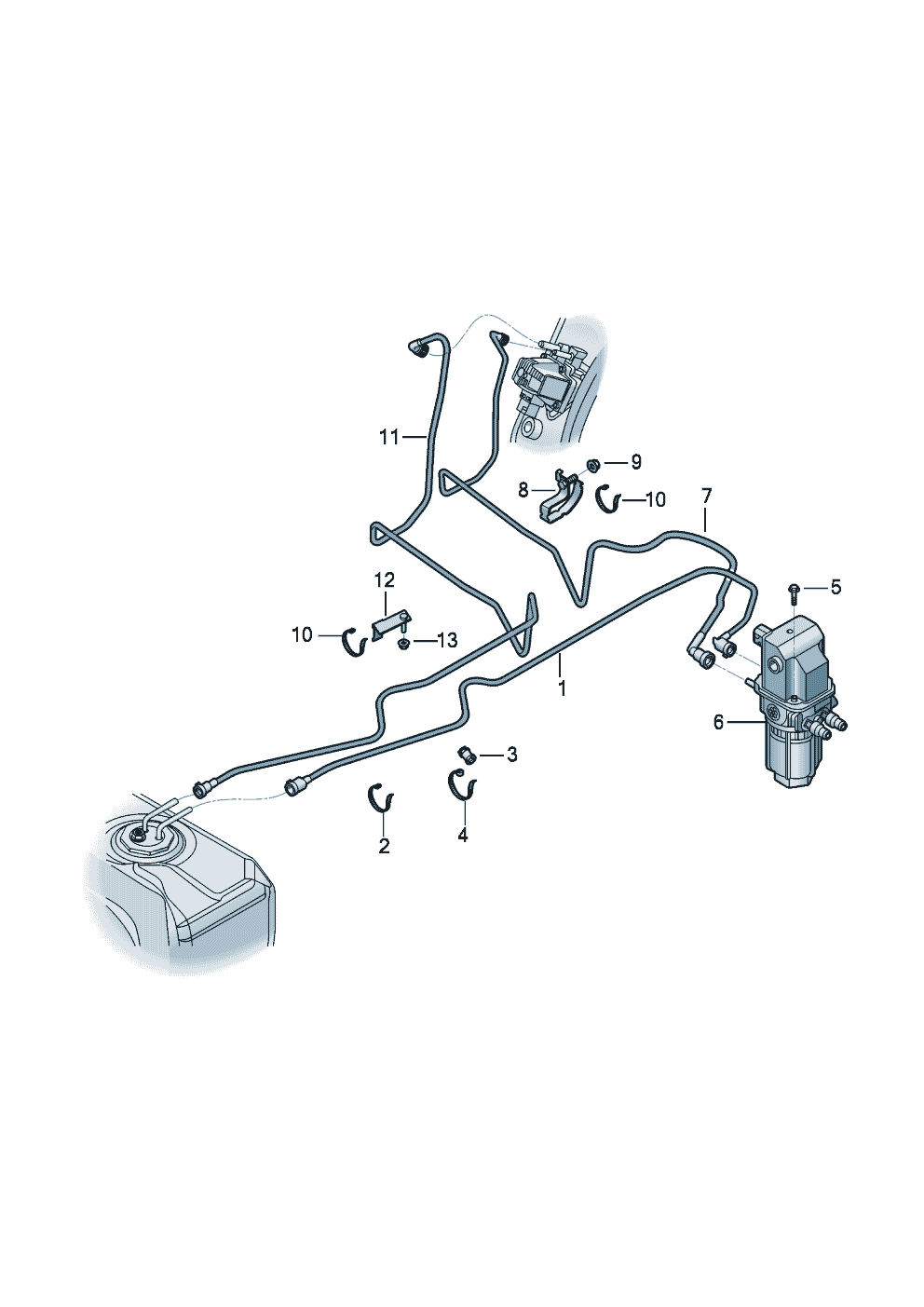

AdBlue refuelling system for Constellation Euro VI(CON6) 2024 [EUROPE]

№	part number	information		description	remark	unit
		AdBlue refuelling system		AdBlue refuelling system
1	23H 131 984 C	qty: 1 Pipe assembly Urea solution AdBlue	23H 131 984 C	Pipe assembly Urea solution AdBlue		1
2	N02 090 57	qty: 8 Cable ties	N02 090 57	Cable ties	6, 5X390	8
2	2W0 905 121	qty: 2 hose clip	2W0 905 121	hose clip	9, 75X300	2
3	23B 131 131	qty: 4 Distance piece	23B 131 131	Distance piece		4
4	23B 131 736	qty: 2 Clamp	23B 131 736	Clamp		2
5	N10 156 009	qty: 2 Hex collared bolt	N10 156 009	Hex collared bolt	M8X25	2
6		Extraction unit with metering pump see illustration:		Extraction unit with metering pump see illustration:	254-020
7	23H 131 984 E	qty: 1 Pipe assembly Urea solution AdBlue	23H 131 984 E	Pipe assembly Urea solution AdBlue		1
8	23H 131 157 A	qty: 1 pipe holder	23H 131 157 A	pipe holder		1
9	N10 821 101	qty: 1 Hexagon collar nut	N10 821 101	Hexagon collar nut	M16X1.5	1
10	N02 090 57	qty: 4 Cable ties	N02 090 57	Cable ties	6, 5X390	4
11	23H 131 983 A	qty: 1 Pipe assembly Urea solution AdBlue	23H 131 983 A	Pipe assembly Urea solution AdBlue		1
12	23H 131 157 B	qty: 1 pipe holder	23H 131 157 B	pipe holder		1
13	N10 272 302	qty: 1 Hexagon collar nut self-locking	N10 272 302	Hexagon collar nut self-locking	M10	1
