Brand: Volkswagen-commercial
Serie: Constellation Euro VI
Model: Constellation Euro VI
Engine: -
Model Year: 2023
Date of manufacture: -
Transmission: -

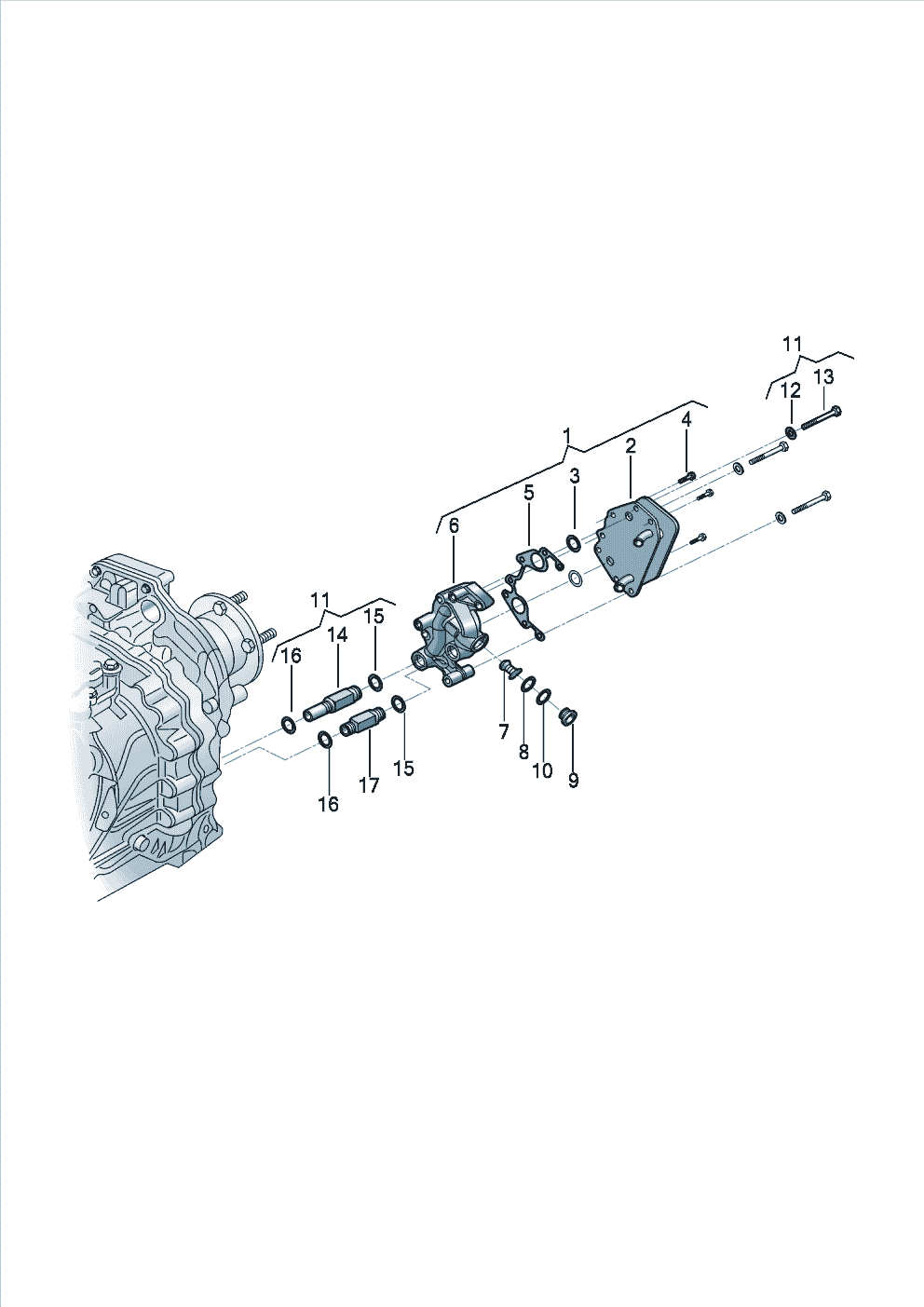

Oil cooler heat exchanger ZF 12TX 2624TD ZF 12TX 2824TO for Constellation Euro VI(CON6) 2023 [EUROPE]

Oil cooler heat exchanger ZF 12TX 2624TD ZF 12TX 2824TO for Constellation Euro VI(CON6) 2023 [EUROPE]
№ part number information description remark unit model
Oil cooler heat exchanger
PR:G2G,G2H
 Oil cooler heat exchanger ZF 12TX 2624TD ZF 12TX 2824TO PR:G2G,G2H
1 2V3 317 021  qty: 1
heat exchanger
2V3 317 021  heat exchanger 1
2 2V3 317 019  qty: 1
Gear oil cooler
2V3 317 019  Gear oil cooler 1
3 2V3 311 499 M  qty: 2
O-ring
2V3 311 499 M  O-ring 28X4 2
4 2V3 301 343  qty: 4
Torx screw
2V3 301 343  Torx screw M8X25 4
5 2V3 301 865 B  qty: 1
universal joint heat exchanger
2V3 301 865 B  universal joint heat exchanger 1
6 2V3 317 020  qty: 1
heat exchanger housing
2V3 317 020  heat exchanger housing 1
7 2V3 321 363  qty: 1
adapter with valve
2V3 321 363  adapter with valve 1
8 2V3 311 381 C  qty: 1
Securing ring
2V3 311 381 C  Securing ring 27X1, 5 1
9 2T2 301 729  qty: 1
sealing plug
2T2 301 729  sealing plug M30X1, 5 1
10 2V3 311 499 N  qty: 1
O-ring
2V3 311 499 N  O-ring 27X2 1
11 2V3 321 005 B  qty: 1
1 set attachment parts Coupling element heat exchanger
2V3 321 005 B  1 set attachment parts Coupling element heat exchanger 1
12 2V3 325 212  qty: 3
support washer
2V3 325 212  support washer 3
13 2V3 301 331 F  qty: 3
Hexagon bolt
2V3 301 331 F  Hexagon bolt M10X85 3
14 2V3 311 862  qty: 1
Banjo bolt
2V3 311 862  Banjo bolt M24X1, 5X124 1
15 2V3 311 499 P  qty: 2
O-ring
2V3 311 499 P  O-ring 22X4 2
16 2V2 311 499  qty: 2
seal ring
2V2 311 499  seal ring 21X2 2
17 2V3 311 862 A  qty: 1
Banjo bolt
2V3 311 862 A  Banjo bolt M24X1, 5X86 1
