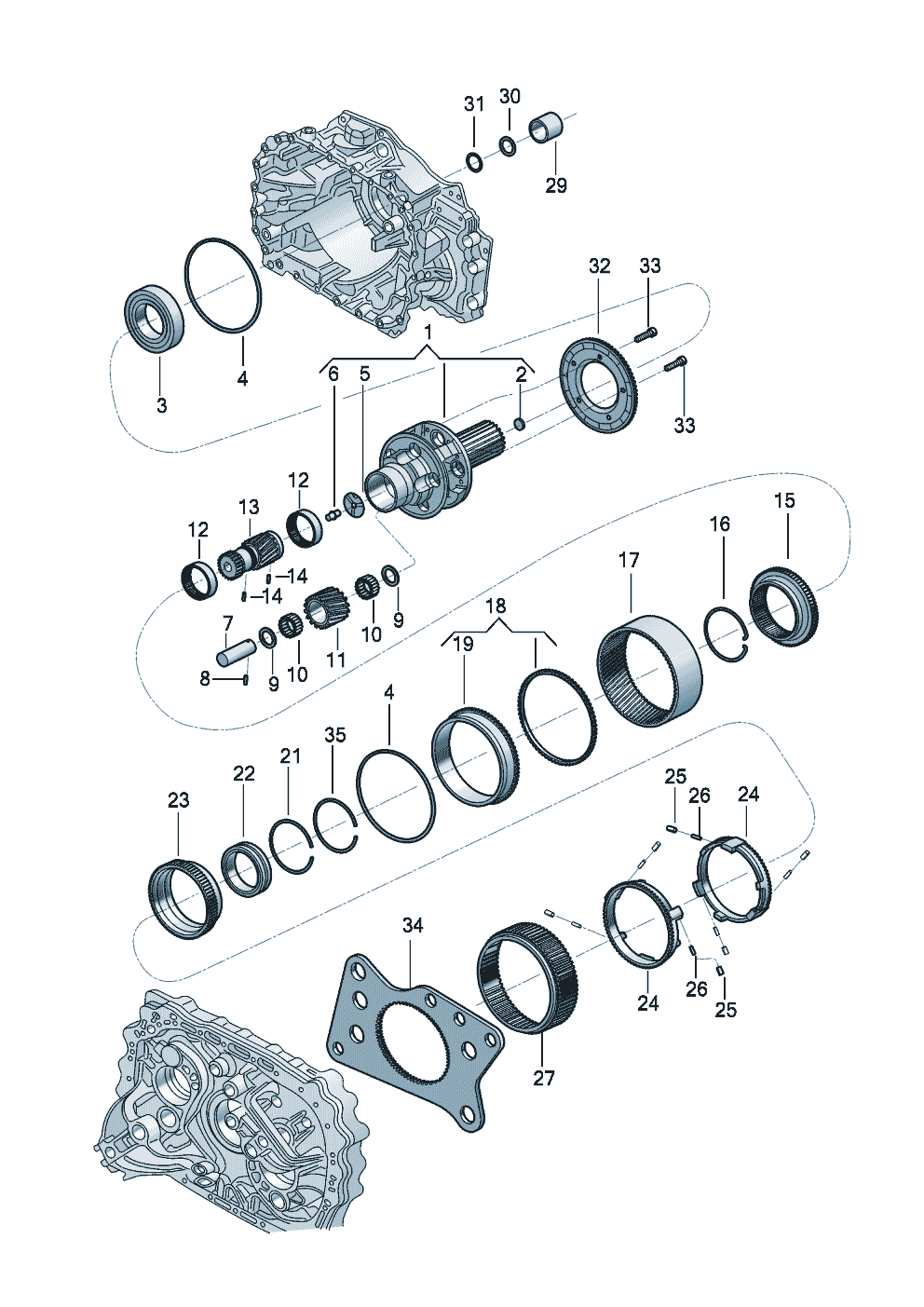

gears and shafts 1 set: differential pinions
PR:G2G,G2H
|
|
gears and shafts 1 set: differential pinions
|
ZF 12TX 2624TD ZF 12TX 2824TO |
|
PR:G2G,G2H |
|
|
|
1 |
2U2 311 927
|
qty: 1
planet pinion carrier Cardan shaft
|
2U2 311 927
|
planet pinion carrier Cardan shaft
|
|
1 |
|
|
|
|
2 |
2V5 301 231
|
qty: 1
End cap
|
2V5 301 231
|
End cap
|
|
1 |
|
|
|
|
3 |
2T0 301 845 A
|
qty: 1
ball bearing
|
2T0 301 845 A
|
ball bearing
|
|
1 |
|
|
|
|
4 |
2V5 323 157 C
|
qty: 2
Securing ring
|
2V5 323 157 C
|
Securing ring
|
|
2 |
|
|
|
|
5 |
2V3 311 183
|
qty: 1
securing cap
|
2V3 311 183
|
securing cap
|
|
1 |
|
|
|
|
5 |
2V2 311 183
|
qty: 1
securing cap
|
2V2 311 183
|
securing cap
|
|
1 |
|
|
|
|
5 |
2V3 311 183
|
qty: 1
securing cap
|
2V3 311 183
|
securing cap
|
|
1 |
|
|
|
|
6 |
2V3 311 893
|
qty: 1
Oil suction pipe
|
2V3 311 893
|
Oil suction pipe
|
|
1 |
|
|
|
|
7 |
2V3 311 613
|
qty: 1
Cylinder pin
|
2V3 311 613
|
Cylinder pin
|
|
1 |
|
|
|
|
7 |
2U2 311 613 C
|
qty: 1
Cylinder pin
|
2U2 311 613 C
|
Cylinder pin
|
|
1 |
|
|
|
|
8 |
2V3 301 443 B
|
qty: 1
Securing pin
|
2V3 301 443 B
|
Securing pin
|
|
1 |
|
|
|
|
9 |
2V3 323 319
|
qty: 2
Spacer
|
2V3 323 319
|
Spacer
|
|
2 |
|
|
|
|
10 |
2V3 311 265
|
qty: 2
needle bearing -
|
2V3 311 265
|
needle bearing -
|
|
2 |
|
|
|
|
11 |
2V2 323 301 A
|
qty: 1
1 set: differential pinions
|
2V2 323 301 A
|
1 set: differential pinions
|
|
1 |
|
|
|
|
12 |
2V2 301 251
|
qty: 2
Pressure plate
|
2V2 301 251
|
Pressure plate
|
|
2 |
|
|
|
|
13 |
2V2 311 914
|
qty: 1
gear
|
2V2 311 914
|
gear
|
SOLAR |
1 |
|
|
|
|
14 |
2V5 311 245 B
|
qty: 2
operating pin
|
2V5 311 245 B
|
operating pin
|
|
2 |
|
|
|
|
15 |
2V5 311 146 C
|
qty: 1
synchronizer ring
|
2V5 311 146 C
|
synchronizer ring
|
|
1 |
|
|
|
|
16 |
2V5 323 157 B
|
qty: 1
Securing ring
|
2V5 323 157 B
|
Securing ring
|
|
1 |
|
|
|
|
17 |
2V2 323 315 A
|
qty: 1
gear
|
2V2 323 315 A
|
gear
|
inner upper |
1 |
|
|
|
|
18 |
2V2 398 941
|
qty: 1
retaining sleeve
|
2V2 398 941
|
retaining sleeve
|
|
1 |
|
|
|
|
19 |
2V3 311 167
|
qty: 1
inner ring retaining sleeve
|
2V3 311 167
|
inner ring retaining sleeve
|
|
1 |
|
|
|
|
21 |
WHT 006 626
|
qty: 1
snap ring
|
WHT 006 626
|
snap ring
|
|
1 |
|
|
|
|
22 |
2V5 311 213 A
|
qty: 1
needle bearing -
|
2V5 311 213 A
|
needle bearing -
|
100X130X30 |
1 |
|
|
|
|
23 |
2V2 311 146
|
qty: 1
retaining sleeve
|
2V2 311 146
|
retaining sleeve
|
|
1 |
|
|
|
|
24 |
2T2 311 247 E
|
qty: 2
synchronizer ring
|
2T2 311 247 E
|
synchronizer ring
|
GV |
2 |
|
|
|
|
25 |
2V5 311 375 A
|
qty: 6
Grommet
|
2V5 311 375 A
|
Grommet
|
|
6 |
|
|
|
|
26 |
2V5 311 312 C
|
qty: 6
Pressure spring
|
2V5 311 312 C
|
Pressure spring
|
|
6 |
|
|
|
|
27 |
2V2 311 242 A
|
qty: 1
retaining sleeve
|
2V2 311 242 A
|
retaining sleeve
|
|
1 |
|
|
|
|
29 |
2V5 311 365 F
|
qty: 1
retaining sleeve
|
2V5 311 365 F
|
retaining sleeve
|
|
1 |
|
|
|
|
30 |
2V2 311 187
|
qty: 1
Securing ring
|
2V2 311 187
|
Securing ring
|
64X2 |
1 |
|
|
|
|
31 |
2V5 311 978 A E
|
qty: 1
adjusting washer
|
2V5 311 978 A E
|
adjusting washer
|
50X63, 7X1, 00 |
1 |
|
|
|
|
31 |
2V5 311 978 A D
|
qty: 1
adjusting washer
|
2V5 311 978 A D
|
adjusting washer
|
50X63, 7X1, 10 |
1 |
|
|
|
|
31 |
2V5 311 978 A C
|
qty: 1
adjusting washer
|
2V5 311 978 A C
|
adjusting washer
|
50X63, 7X1, 20 |
1 |
|
|
|
|
31 |
2V5 311 978 A B
|
qty: 1
adjusting washer
|
2V5 311 978 A B
|
adjusting washer
|
50X63, 7X1, 30 |
1 |
|
|
|
|
31 |
2V5 311 978 A A
|
qty: 1
adjusting washer
|
2V5 311 978 A A
|
adjusting washer
|
50X63, 7X1, 40 |
1 |
|
|
|
|
31 |
2V5 311 978 T
|
qty: 1
adjusting washer
|
2V5 311 978 T
|
adjusting washer
|
50X63, 7X1, 50 |
1 |
|
|
|
|
31 |
2V5 311 978 S
|
qty: 1
adjusting washer
|
2V5 311 978 S
|
adjusting washer
|
50X63, 7X1, 60 |
1 |
|
|
|
|
31 |
2V5 311 978 R
|
qty: 1
adjusting washer
|
2V5 311 978 R
|
adjusting washer
|
50X63, 7X1, 70 |
1 |
|
|
|
|
31 |
2V5 311 978 Q
|
qty: 1
adjusting washer
|
2V5 311 978 Q
|
adjusting washer
|
50X63, 7X1, 80 |
1 |
|
|
|
|
31 |
2V5 311 978 P
|
qty: 1
adjusting washer
|
2V5 311 978 P
|
adjusting washer
|
50X63, 7X1, 90 |
1 |
|
|
|
|
31 |
2V5 311 978 N
|
qty: 1
adjusting washer
|
2V5 311 978 N
|
adjusting washer
|
50X63, 7X2, 00 |
1 |
|
|
|
|
31 |
2V5 311 978 M
|
qty: 1
adjusting washer
|
2V5 311 978 M
|
adjusting washer
|
50X63, 7X2, 10 |
1 |
|
|
|
|
31 |
2V5 311 978 L
|
qty: 1
adjusting washer
|
2V5 311 978 L
|
adjusting washer
|
50X63, 7X2, 20 |
1 |
|
|
|
|
31 |
2V5 311 978 K
|
qty: 1
adjusting washer
|
2V5 311 978 K
|
adjusting washer
|
50X63, 7X2, 30 |
1 |
|
|
|
|
31 |
2V5 311 978 J
|
qty: 1
adjusting washer
|
2V5 311 978 J
|
adjusting washer
|
50X63, 7X2, 40 |
1 |
|
|
|
|
31 |
2V5 311 978 H
|
qty: 1
adjusting washer
|
2V5 311 978 H
|
adjusting washer
|
50X63, 7X2, 50 |
1 |
|
|
|
|
31 |
2V5 311 978 G
|
qty: 1
adjusting washer
|
2V5 311 978 G
|
adjusting washer
|
50X63, 7X2, 60 |
1 |
|
|
|
|
31 |
2V5 311 978 F
|
qty: 1
adjusting washer
|
2V5 311 978 F
|
adjusting washer
|
50X63, 7X2, 70 |
1 |
|
|
|
|
31 |
2V5 311 978 E
|
qty: 1
adjusting washer
|
2V5 311 978 E
|
adjusting washer
|
50X63, 7X2, 80 |
1 |
|
|
|
|
31 |
2V5 311 978 D
|
qty: 1
adjusting washer
|
2V5 311 978 D
|
adjusting washer
|
50X63, 7X2, 90 |
1 |
|
|
|
|
31 |
2V5 311 978 C
|
qty: 1
adjusting washer
|
2V5 311 978 C
|
adjusting washer
|
50X63, 7X3, 00 |
1 |
|
|
|
|
31 |
2V5 311 978 B
|
qty: 1
adjusting washer
|
2V5 311 978 B
|
adjusting washer
|
50X63, 7X3, 10 |
1 |
|
|
|
|
31 |
2V5 311 978 A
|
qty: 1
adjusting washer
|
2V5 311 978 A
|
adjusting washer
|
50X63, 7X3, 20 |
1 |
|
|
|
|
31 |
2V5 311 978
|
qty: 1
adjusting washer
|
2V5 311 978
|
adjusting washer
|
50X63, 7X3, 30 |
1 |
|
|
|
|
32 |
2V3 311 708
|
qty: 1
rotor for speed sensor
|
2V3 311 708
|
rotor for speed sensor
|
|
1 |
|
|
|
|
33 |
2V3 301 341
|
qty: 5
Socket head bolt
|
2V3 301 341
|
Socket head bolt
|
M12X16 |
5 |
|
|
|
|
34 |
2V3 301 293 B
|
qty: 1
Spacer plate
|
2V3 301 293 B
|
Spacer plate
|
GP |
1 |
|
|
|
|
34 |
2V3 301 293 D
|
qty: 1
Spacer plate
|
2V3 301 293 D
|
Spacer plate
|
GP |
1 |
|
|
|
|
35 |
23K 311 381
|
qty: 1
Securing ring
|
23K 311 381
|
Securing ring
|
100X2 |
1 |
|
