Brand: Volkswagen-commercial
Serie: Constellation Euro VI
Model: Constellation Euro VI
Engine: -
Model Year: 2023
Date of manufacture: -
Transmission: -

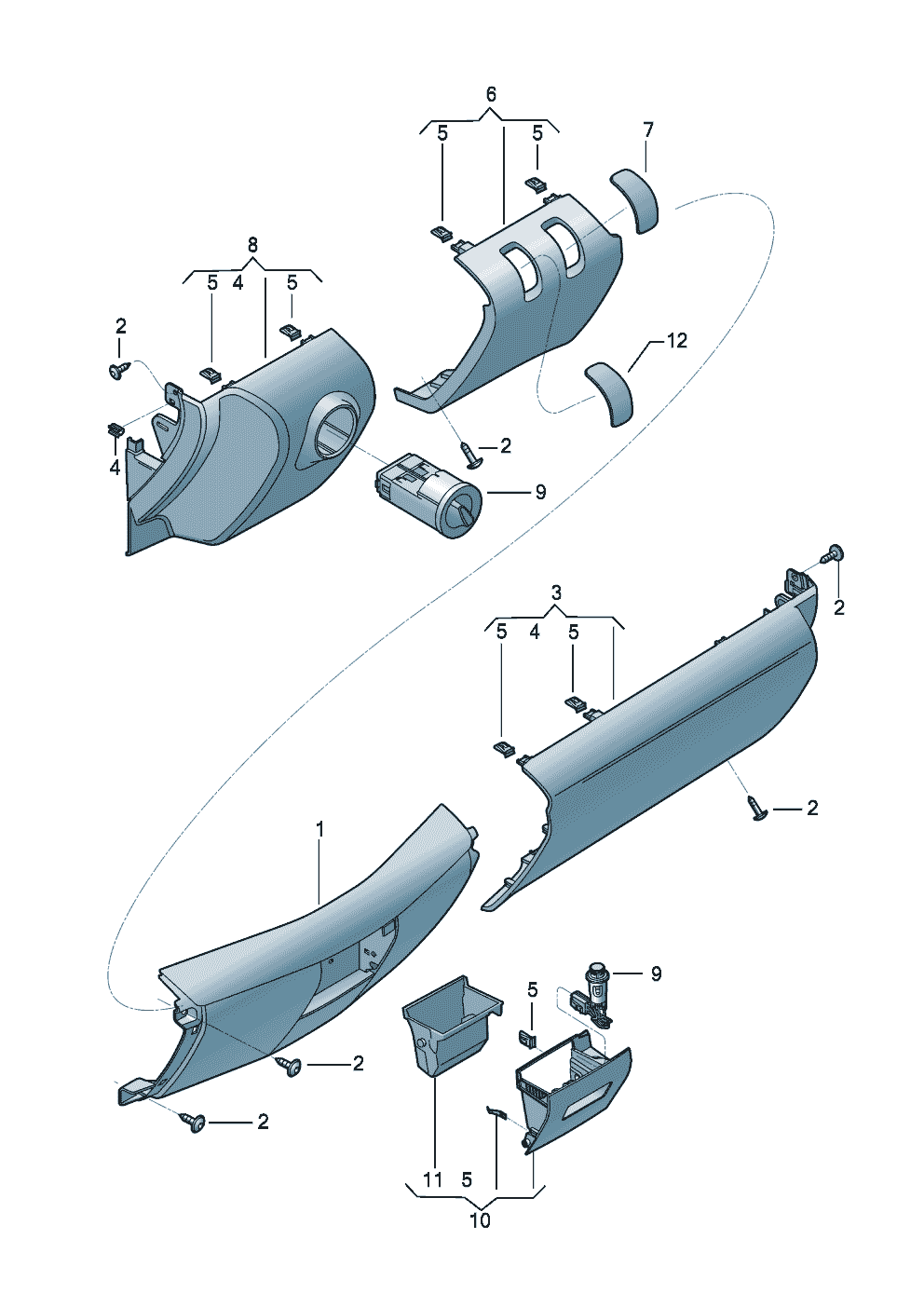

dashboard for Constellation Euro VI(CON6) 2023 [EUROPE]

dashboard for Constellation Euro VI(CON6) 2023 [EUROPE]
№ part number information description remark unit model
dashboard
dashboard
1 2R2 857 192 C  qty: 1
Trim middle part
2R2 857 192 C  Trim middle part 1
2R2 857 192 C NA2  palladium grey
2R2 857 192 C NA2  palladium grey
2 N90 698 606  qty: X
Hexagon socket head panel bolt
N90 698 606  Hexagon socket head panel bolt 4, 2X16 X
3 2R2 857 565 A  qty: 1
Trim
2R2 857 565 A  Trim right lower 1
2R2 857 565 A NA2  palladium grey
2R2 857 565 A NA2  palladium grey
4 3B0 867 190  qty: 2
Spring clip
3B0 867 190  Spring clip 2
5 3B0 858 137  qty: X
Spring clip
3B0 858 137  Spring clip X
6 23G 857 504  qty: 1
Brake lever trim
23G 857 504  Brake lever trim 1
23G 857 504 N A2  palladium grey
23G 857 504 N A2  palladium grey
7 2R2 711 847  qty: 1
Cover cap
PR:G2A+K4N+ 1D0
 2R2 711 847  Cover cap 1 PR:G2A+K4N+ 1D0
2R2 711 847 N A2  palladium grey
2R2 711 847 N A2  palladium grey
7 2R2 711 847  qty: 1
Cover cap
PR:G2G+K4N
 2R2 711 847  Cover cap 1 PR:G2G+K4N
2R2 711 847 N A2  palladium grey
2R2 711 847 N A2  palladium grey
8 23G 857 503  qty: 1
Trim
PR:L0L
 23G 857 503  Trim left lower 1 PR:L0L
23G 857 503 N A2  palladium grey
23G 857 503 N A2  palladium grey
9 Switch see illustration:
Switch see illustration: 919-000
10 2R2 857 301 A  qty: 1
ashtray
2R2 857 301 A  ashtray 1
2R2 857 301 A NA2  palladium grey
2R2 857 301 A NA2  palladium grey
11 2R2 857 331  qty: 1
Ashtray insert
2R2 857 331  Ashtray insert 1
2R2 857 331 9 99  Black
2R2 857 331 9 99  Black
12 2T2 711 847  qty: 1
Cover cap
PR:G2G+K4N
 2T2 711 847  Cover cap 1 PR:G2G+K4N
2T2 711 847 N A2  palladium grey
2T2 711 847 N A2  palladium grey
13 23G 858 547 D  qty: 1
Cap
23G 858 547 D  Cap 1
23G 858 547 D NA2  palladium grey
23G 858 547 D NA2  palladium grey
