suspension drivers cab
|
|
suspension drivers cab
|
|
|
|
|
|
|
1 |
2R2 899 507
|
qty: 1
Bracket
|
2R2 899 507
|
Bracket
|
left |
1 |
|
|
|
|
1 |
2R2 899 508
|
qty: 1
Bracket
|
2R2 899 508
|
Bracket
|
right |
1 |
|
|
|
|
2 |
2R2 898 870
|
qty: 2
1 set bearing bushes
|
2R2 898 870
|
1 set bearing bushes
|
|
2 |
|
|
|
|
3 |
N10 863 101
|
qty: 2
Hexagon flange screw
|
N10 863 101
|
Hexagon flange screw
|
M12X1, 5X70 |
2 |
|
|
|
|
4 |
2R2 803 877
|
qty: X
Hexagon bolt
|
2R2 803 877
|
Hexagon bolt
|
M10X55 |
X |
|
|
|
|
5 |
2R2 803 877 D G
|
qty: 2
Hexagon bolt
|
2R2 803 877 D G
|
Hexagon bolt
|
M16X125 |
2 |
|
|
|
|
6 |
2R2 803 875 G
|
qty: 2
Cage nut
|
2R2 803 875 G
|
Cage nut
|
M16 |
2 |
|
|
|
|
7 |
2S2 899 521 A
|
qty: 1
track control arm, complete
|
2S2 899 521 A
|
track control arm, complete
|
|
1 |
|
|
|
|
8 |
2S2 899 523 A
|
qty: 1
Wishbone
|
2S2 899 523 A
|
Wishbone
|
|
1 |
|
|
|
|
9 |
2R2 899 563
|
qty: 2
bracket for crow bar
|
2R2 899 563
|
bracket for crow bar
|
|
2 |
|
|
|
|
10 |
2T2 899 545 B
|
qty: 2
1 set bearing bushes
|
2T2 899 545 B
|
1 set bearing bushes
|
|
2 |
|
|
|
|
11 |
2R2 803 877 K
|
qty: 2
Hexagon bolt
|
2R2 803 877 K
|
Hexagon bolt
|
M20X95 |
2 |
|
|
|
|
12 |
2TB 499 085 A
|
qty: 2
Washer
|
2TB 499 085 A
|
Washer
|
A21 |
2 |
|
|
|
|
13 |
2R2 803 875 H
|
qty: 2
Cage nut
|
2R2 803 875 H
|
Cage nut
|
M20 |
2 |
|
|
|
|
14 |
T71 012 505
|
qty: 2
Retaining clip
|
T71 012 505
|
Retaining clip
|
|
2 |
|
|
|
|
15 |
N01 619 01
|
qty: 4
Pop rivet
|
N01 619 01
|
Pop rivet
|
|
4 |
|
|
|
|
16 |
N10 863 101
|
qty: 2
Hexagon flange screw
|
N10 863 101
|
Hexagon flange screw
|
M12X1, 5X70 |
2 |
|
|
|
|
17 |
2U0 199 343
|
qty: 1
Brace
|
2U0 199 343
|
Brace
|
|
1 |
|
|
|
|
18 |
2T2 803 875 A
|
qty: 2
Cage nut
|
2T2 803 875 A
|
Cage nut
|
|
2 |
|
|
|
|
19 |
N10 893 901
|
qty: 4
Hexagon bolt
|
N10 893 901
|
Hexagon bolt
|
M14X1, 5X40 FLANGEADO |
4 |
|
|
|
|
20 |
N10 894 501
|
qty: 4
Hexagon nut
|
N10 894 501
|
Hexagon nut
|
|
4 |
|
|
|
|
21 |
2T2 899 565
|
qty: 2
Distance piece
|
2T2 899 565
|
Distance piece
|
|
2 |
|
|
|
|
22 |
2V2 899 541
|
qty: 2
Retainer for damper
|
2V2 899 541
|
Retainer for damper
|
lower |
2 |
|
|
|
|
23 |
23H 803 875
|
qty: 2
suspension strut bearing
|
23H 803 875
|
suspension strut bearing
|
|
2 |
|
|
|
|
24 |
23H 899 515 E
|
qty: 2
Shock absorbers
|
23H 899 515 E
|
Shock absorbers
|
|
2 |
|
|
|
|
24 |
23H 899 515 C
|
qty: 2
Shock absorbers
|
23H 899 515 C
|
Shock absorbers
|
|
2 |
|
|
|
|
24 |
23H 899 515 A
|
qty: 2
Shock absorbers
|
23H 899 515 A
|
Shock absorbers
|
|
2 |
|
|
|
|
25 |
N10 643 401
|
qty: 1
Washer
|
N10 643 401
|
Washer
|
|
1 |
|
|
|
|
26 |
2T0 803 948
|
qty: 1
Cage nut
|
2T0 803 948
|
Cage nut
|
M14X2 |
1 |
|
|
|
|
27 |
2R2 899 445
|
qty: 2
bracket for lift cylinder
|
2R2 899 445
|
bracket for lift cylinder
|
|
2 |
|
|
|
|
28 |
2R2 803 877 A J
|
qty: 1
Hexagon bolt
|
2R2 803 877 A J
|
Hexagon bolt
|
M14X120 |
1 |
|
|
|
|
29 |
2R2 899 512 A
|
qty: 1
spacer sleeve
|
2R2 899 512 A
|
spacer sleeve
|
|
1 |
|
|
|
|
30 |
2V2 899 505 A
|
qty: 1
Hydraulic cylinder
|
2V2 899 505 A
|
Hydraulic cylinder
|
|
1 |
|
|
|
|
30 |
23H 899 505
|
qty: 1
Hydraulic cylinder
|
23H 899 505
|
Hydraulic cylinder
|
|
1 |
|

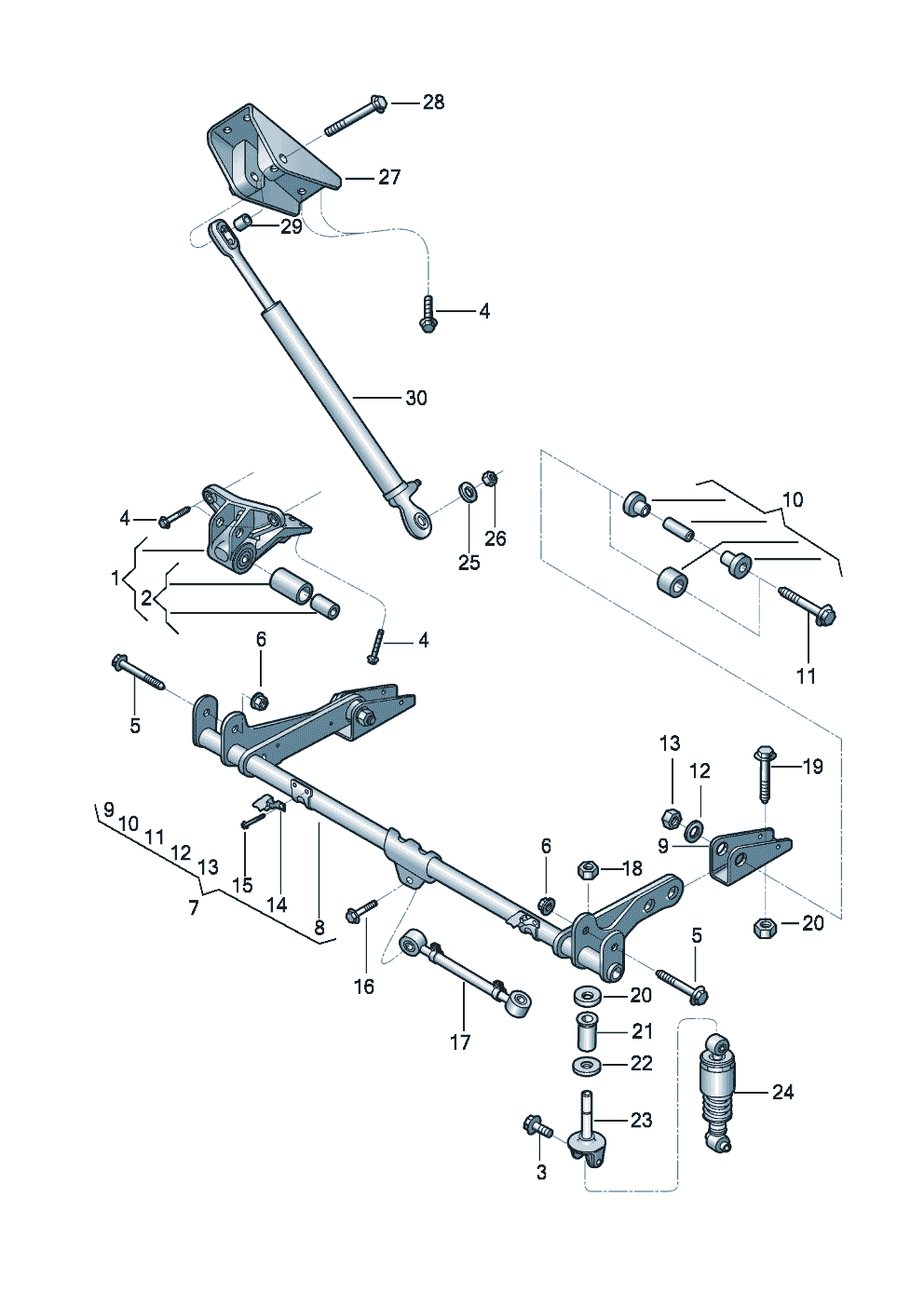

![suspension drivers cab for Constellation Euro VI(CON6) 2023 [EUROPE]](https://img.7zap.com/images/oem/vag2410/ML/Bilder_zgd/2AN/2AN899010.png "suspension drivers cab for Constellation Euro VI(CON6) 2023 [EUROPE]")
